VW 1.8T 20V Turbo 4 Cyl 8.5:1 81.5mm JE Pistons Forged Pistons JE-353824 - FSR - PERFECT SKIRT
£950.00 GBP
JE-353824
Auf Lager
VW 1.8T 20V Turbo 4 Cyl 8.5:1 81.5mm JE Pistons Forged Pistons JE-353824 - FSR - PERFECT SKIRT
You are buying a Set of 4 81.5mm JE Forged Pistons - FSR PERFECT SKIRT
Suits: VW 1.8T 20V 4 Cyl Engines
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Product specifications
| Attribute | Value |
|---|---|
| Bore - Actual | 81.50 mm |
| Bore - Oversize | 0.50 mm |
| Compression Height | 32.66 mm |
| Compression Ratio - Actual | 8.5:1 |
| Deck Clearance | 0.14- mm |
| Dome Volume | -11.3 cc |
| Piston Pin Diameter | 20.00 mm |
| Ring Set Included | JG1004-3209 |
| Stroke | 86.40 mm |
| Weight - Nominal | - g |

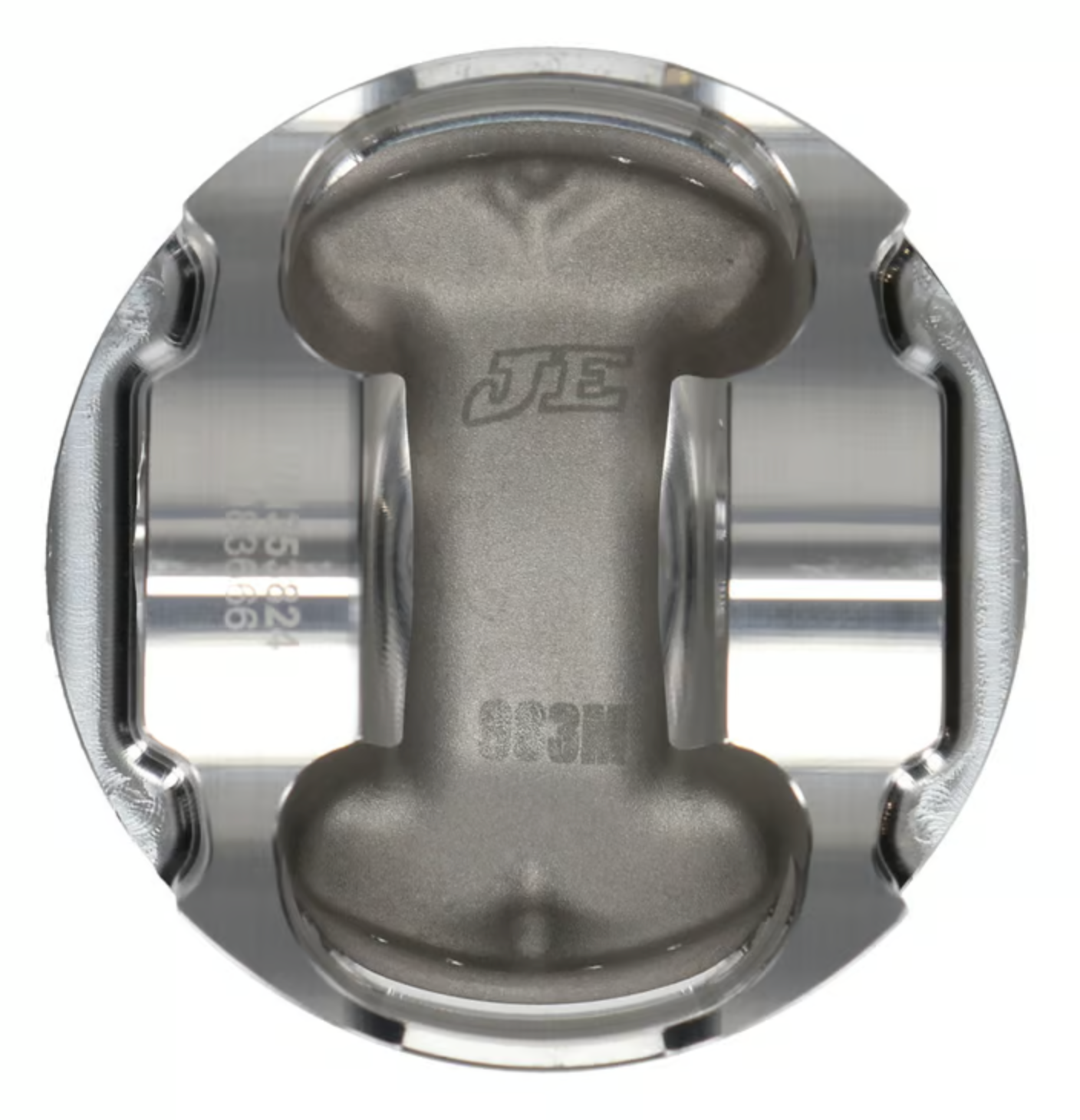

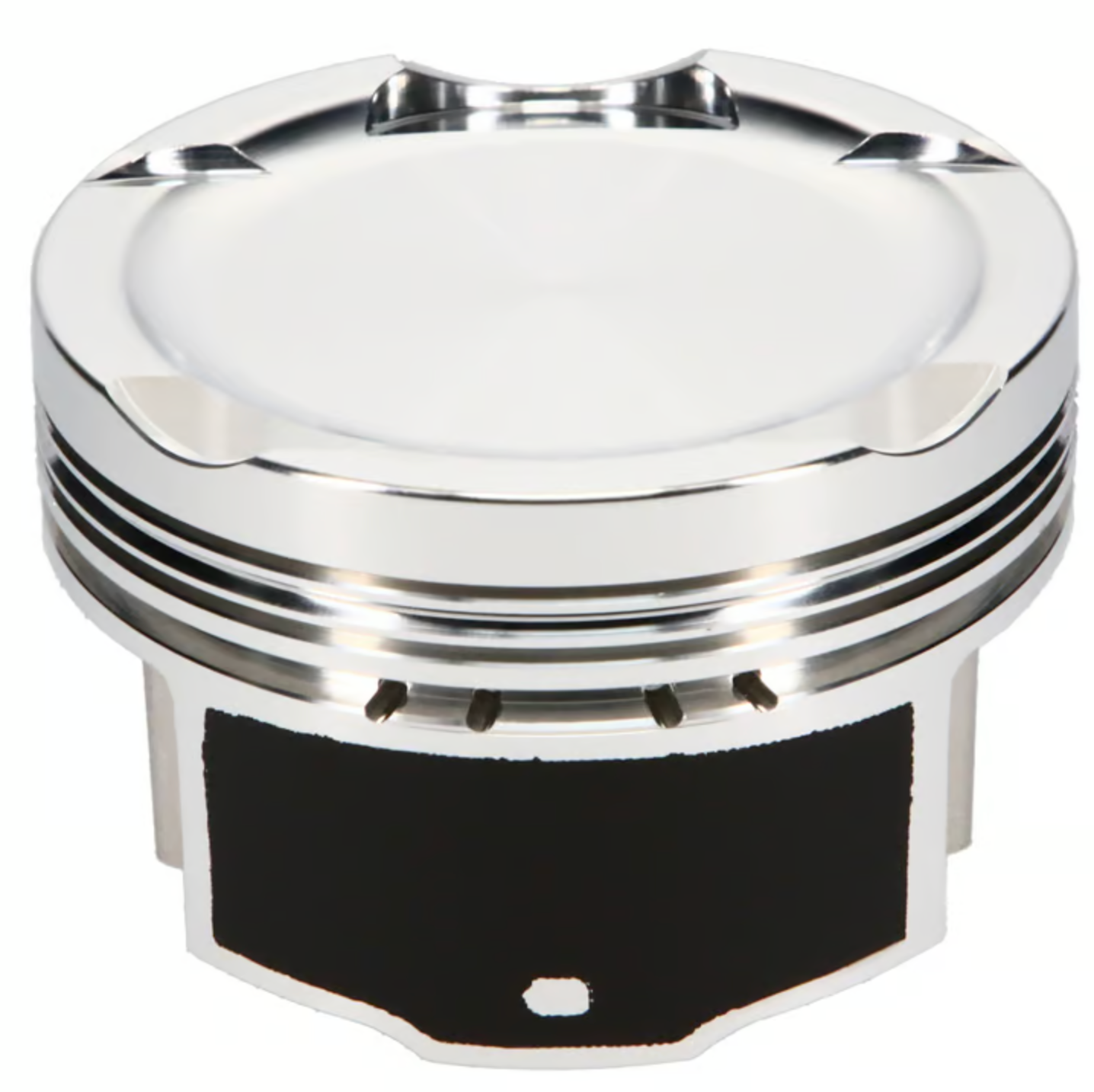

Image is a stock image.
