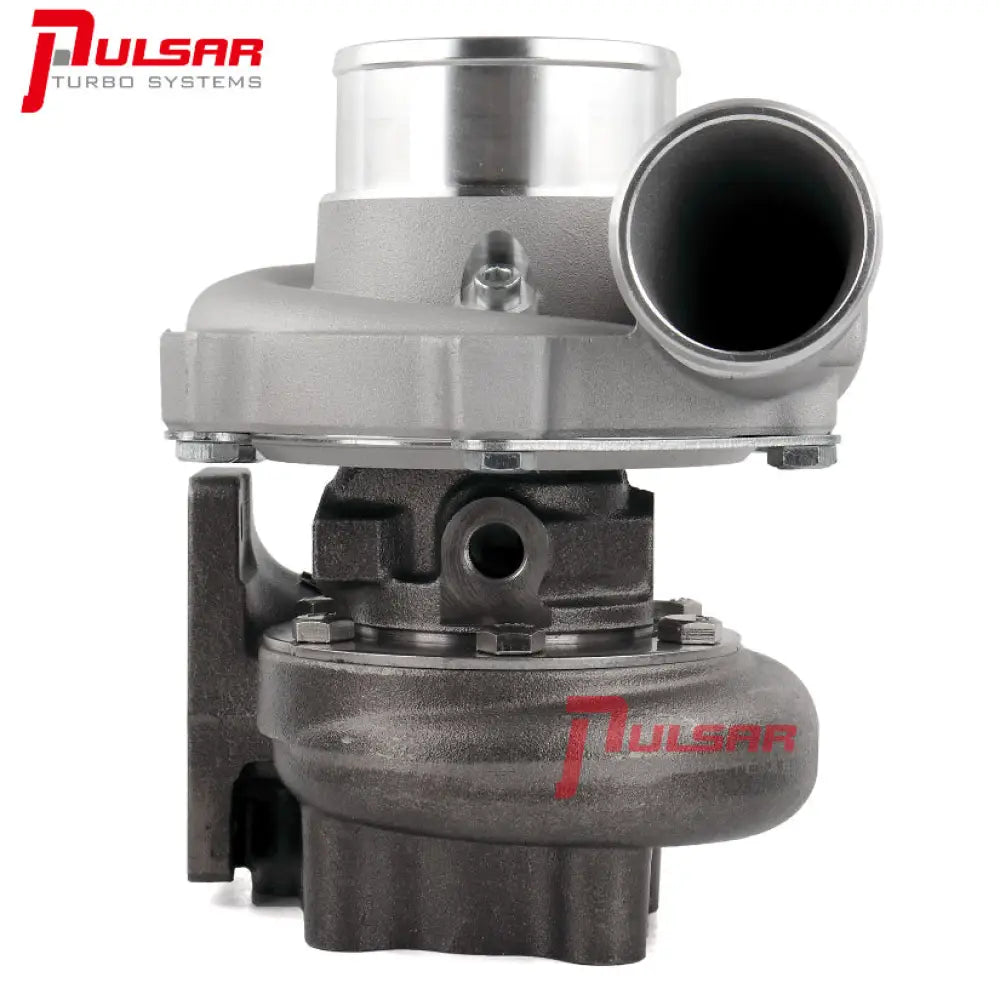

Pulsar PTX2860R Gen 2 Turbocharger
PSR-102128197
Pulsar PTX2860R Gen 2
- Please note, T51R housing option requires an extra 7 days handling time
- Recommended engine displacement 1.6 to 2.5 litres. Power outputs up to 550 hp possible.
- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing shaft movement.

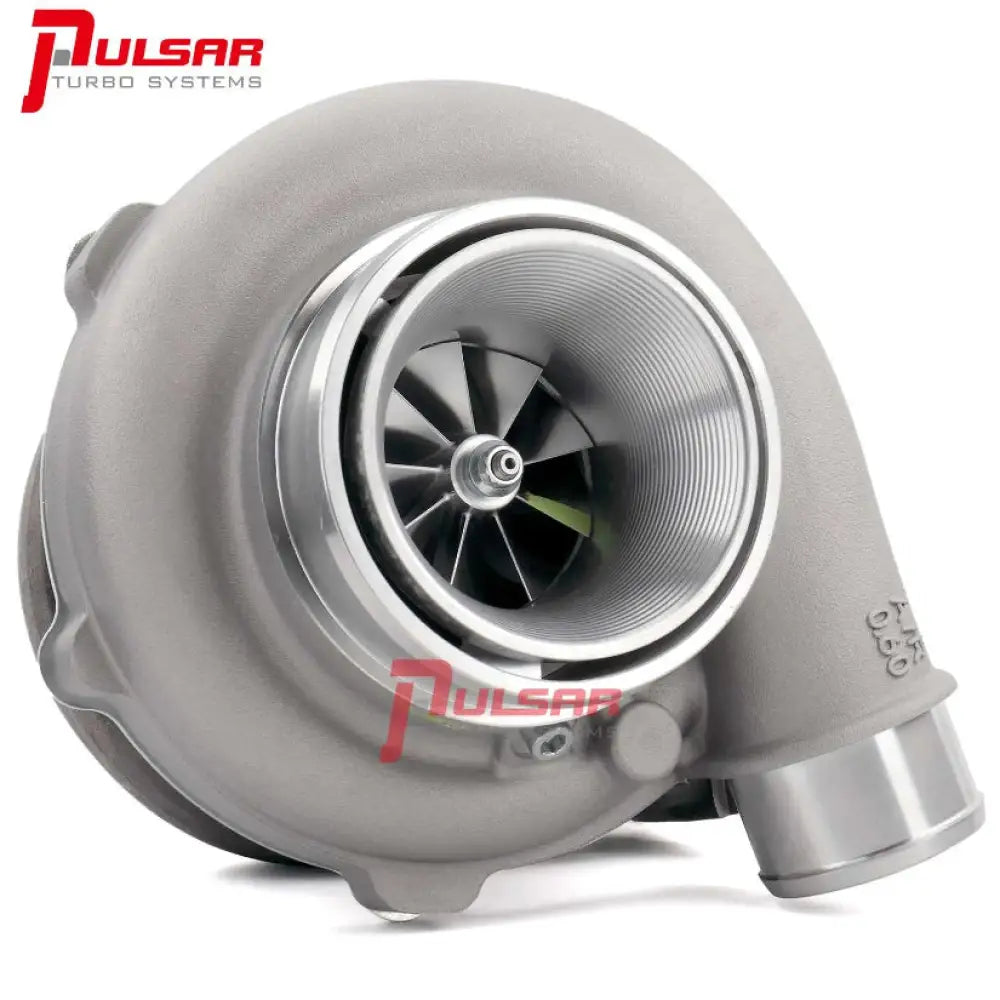

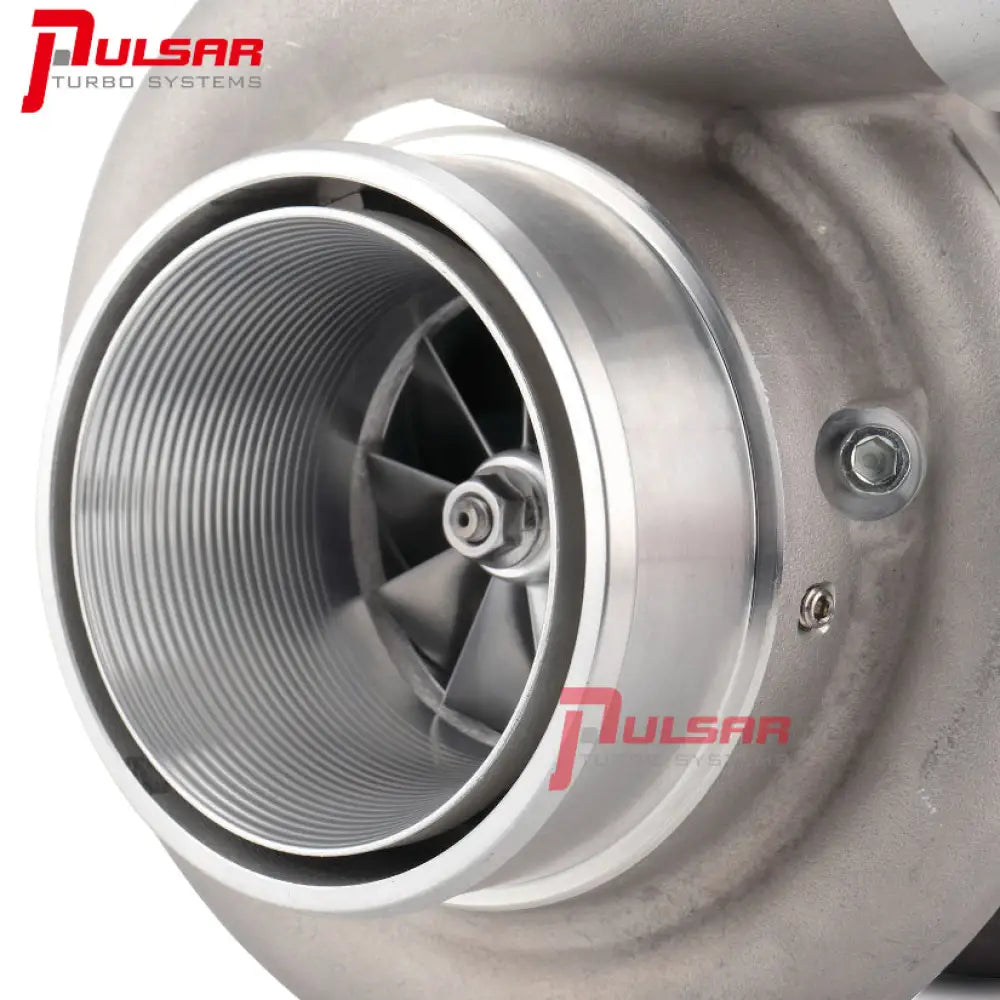

- 45.64/60.07/62mm 8 blade upgraded billet compressor wheel with extended tapered tip technology and with better flow than the 11 blade Gen 1 wheel.

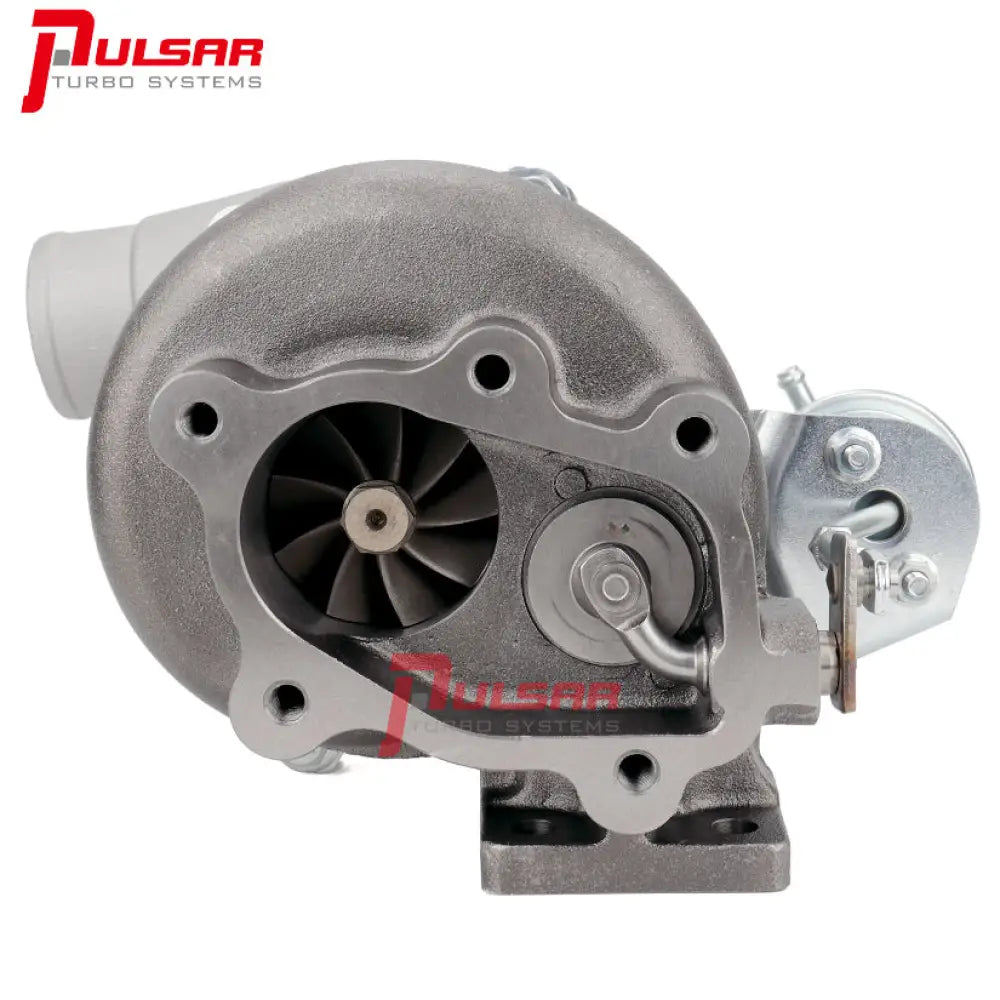

- Inconel 713c 54 / 47 mm 9 blade turbine wheel

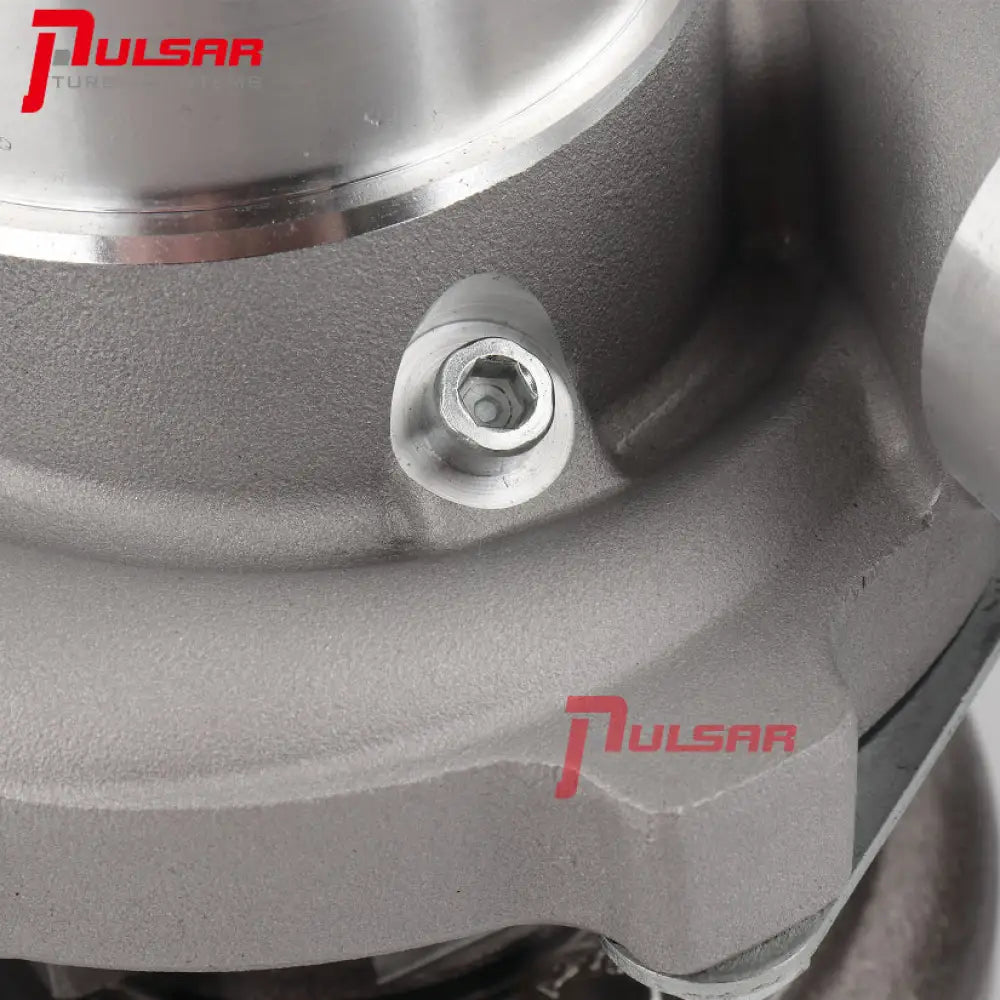

- Gen2 cover with integrated speed sensor port and anti surge.

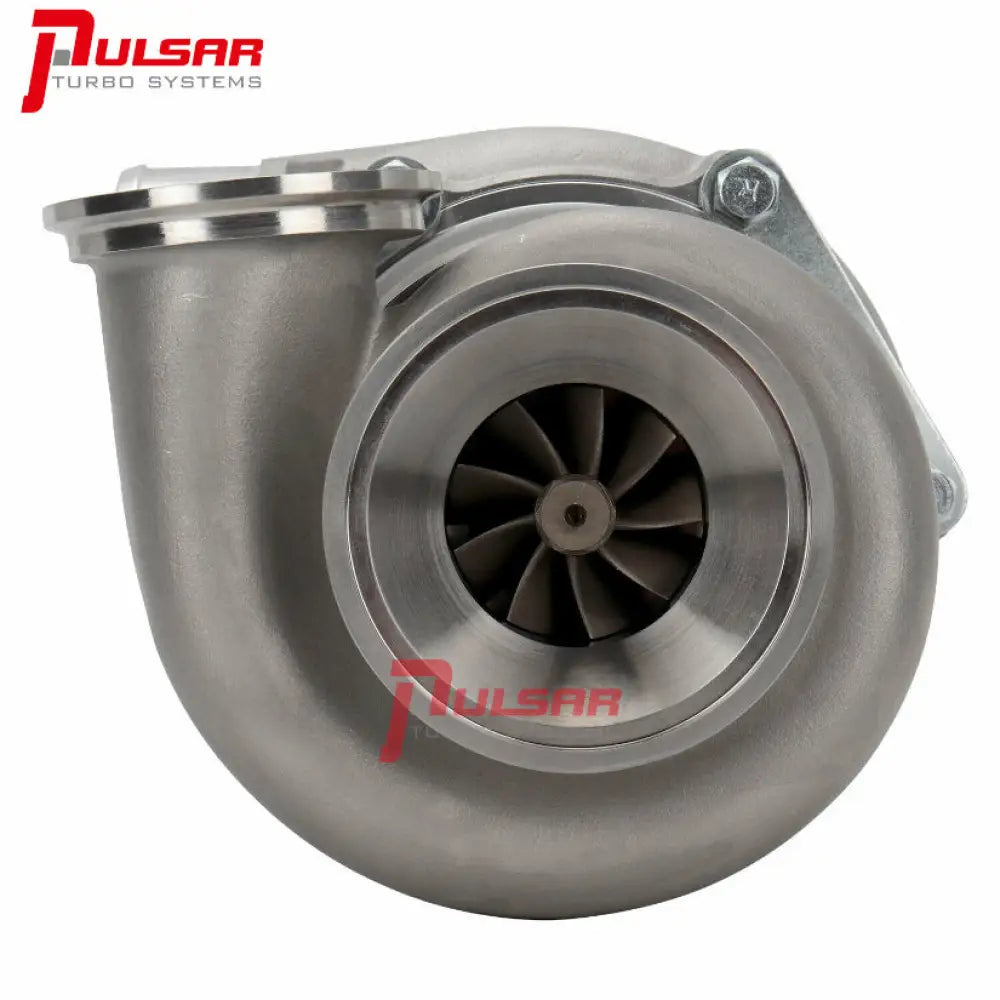

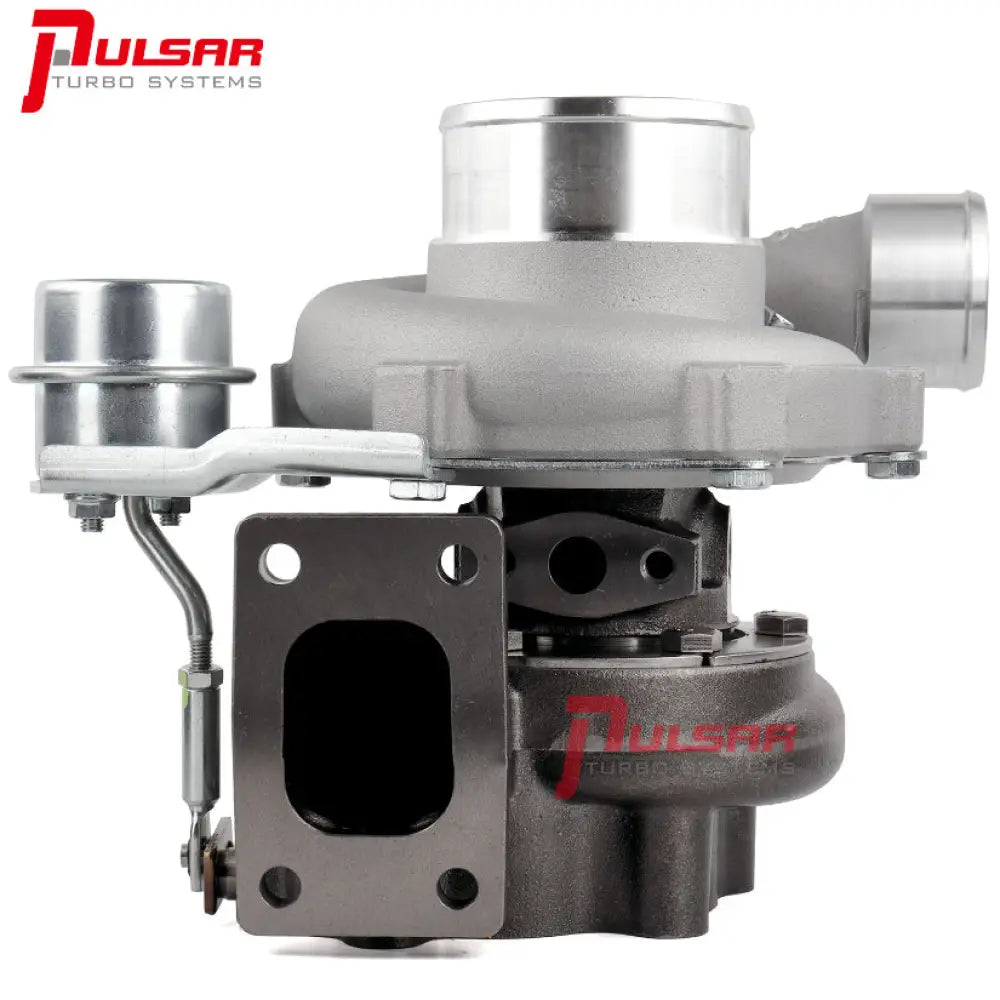

- 0.64, 0.86 A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel turbine housing options all available
- Standard or T51R mod compressor housing options available

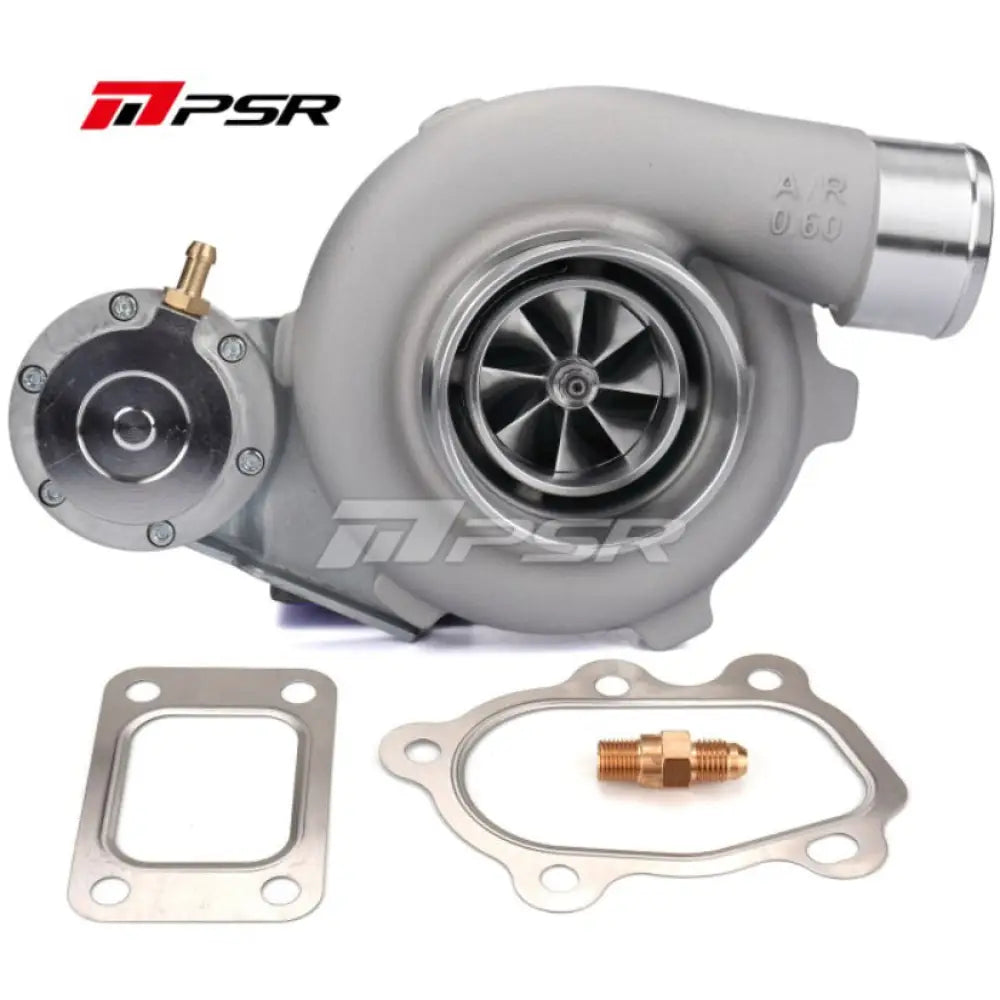

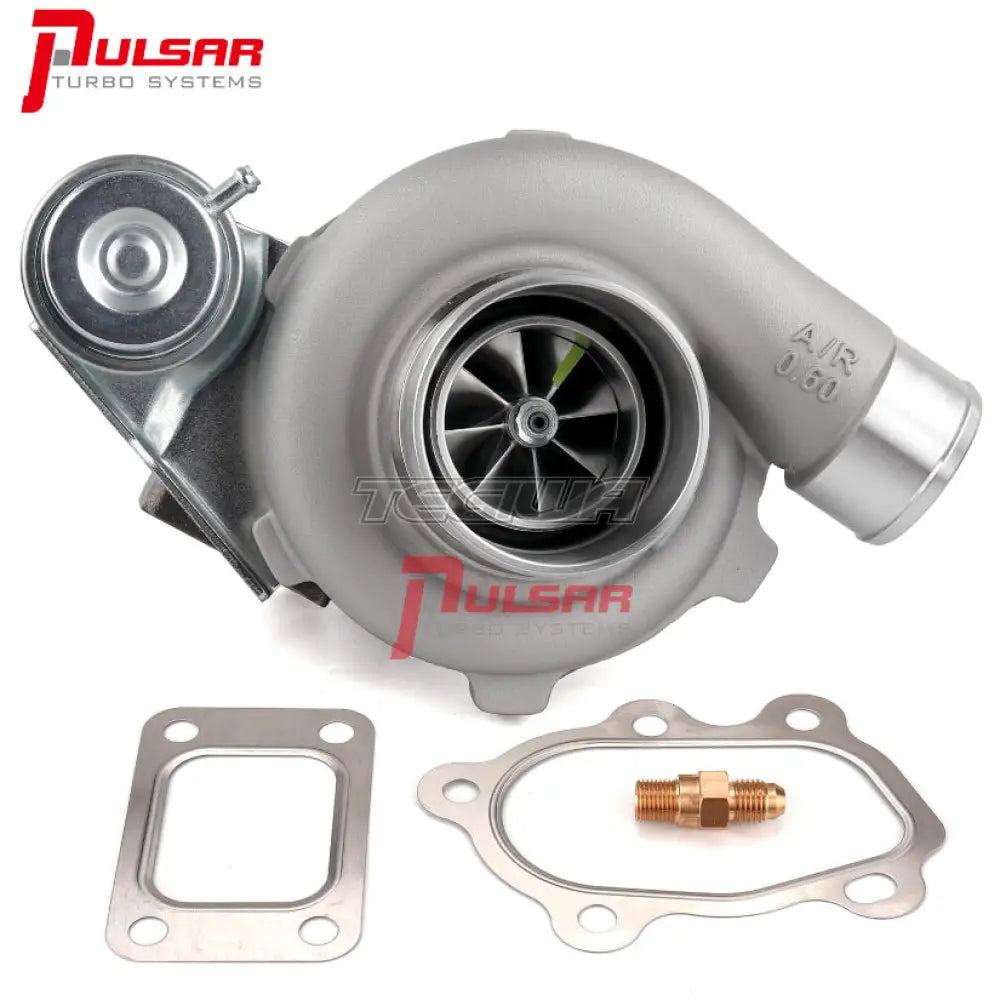

- Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).

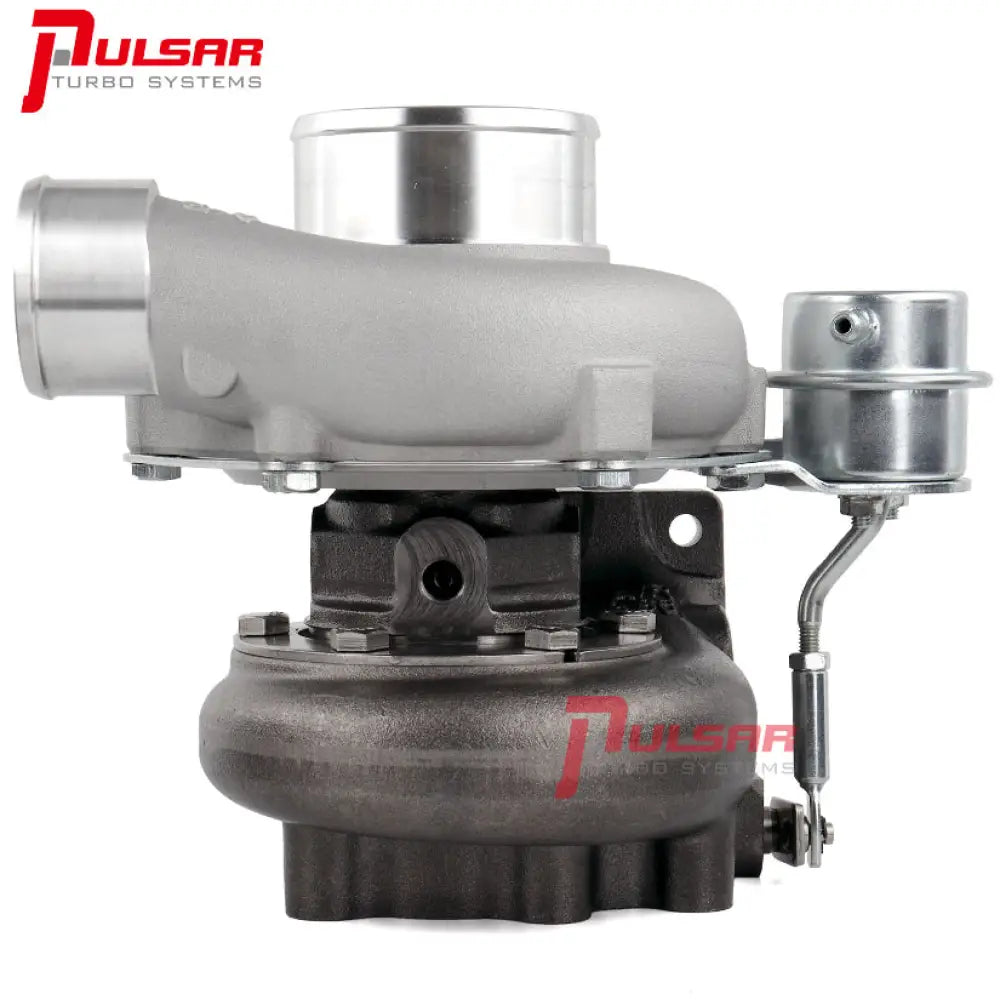

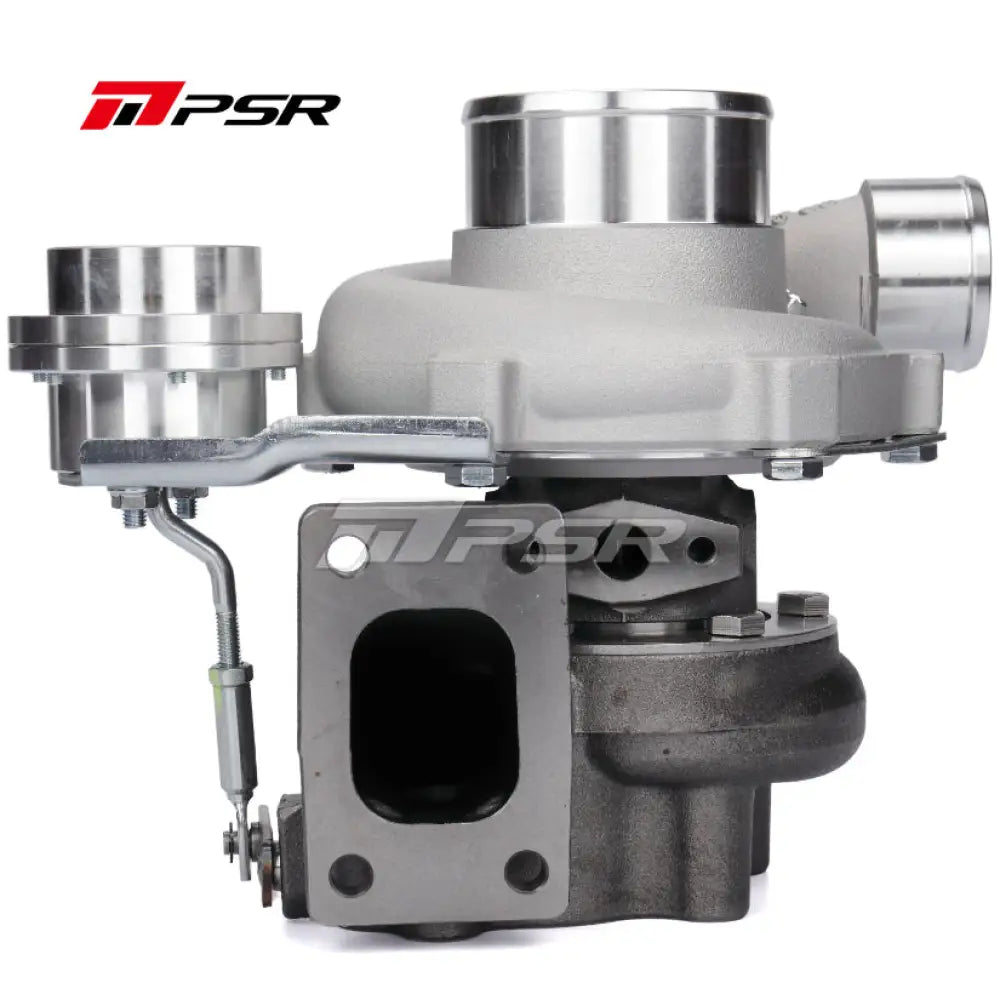

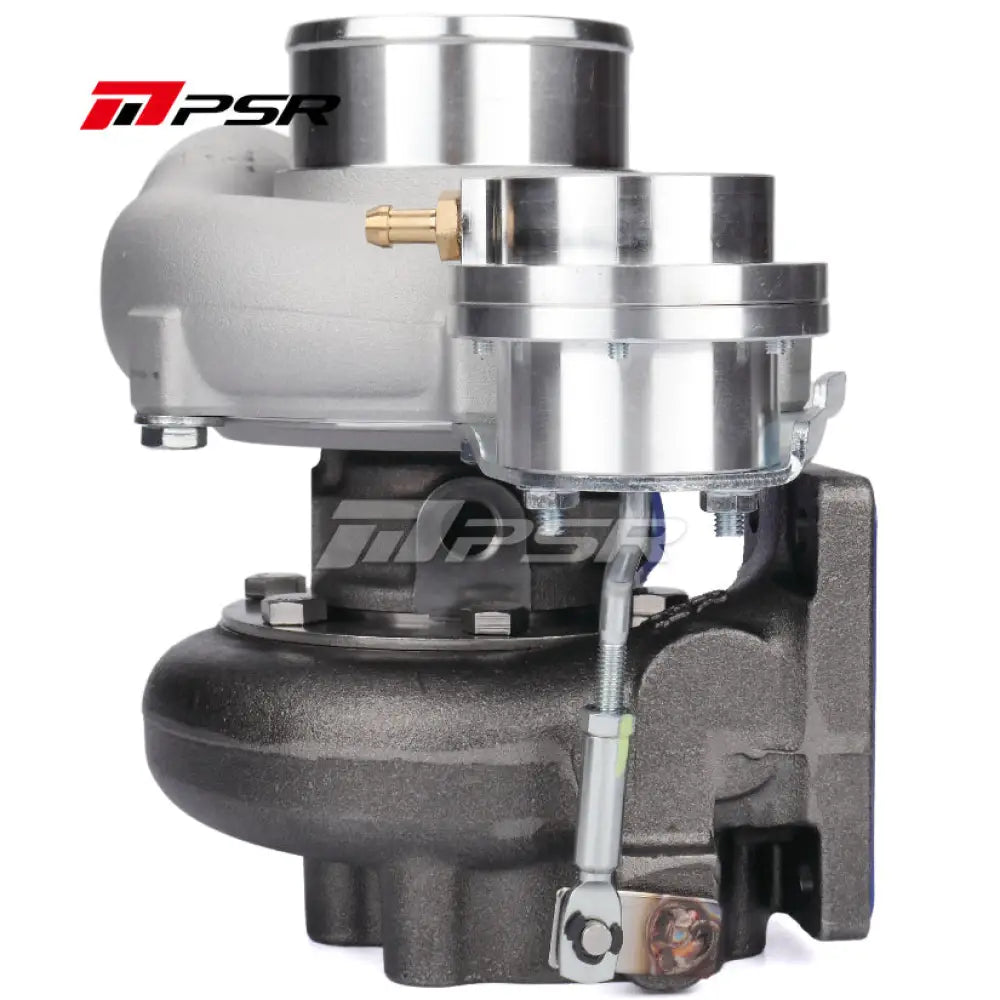

- Wastegate actuator supplied on internally gated units with compressor housing.
- Compressor Inlet :3"
- Compressor Outlet: 2"
- Oil Feed: 7/16-24 UNF with -4an connector
- Oil Drain: Std T3 oil drain flange
- Water In/Outlet: M14x1.5
- We highly recommended running water cooling for better durability.
