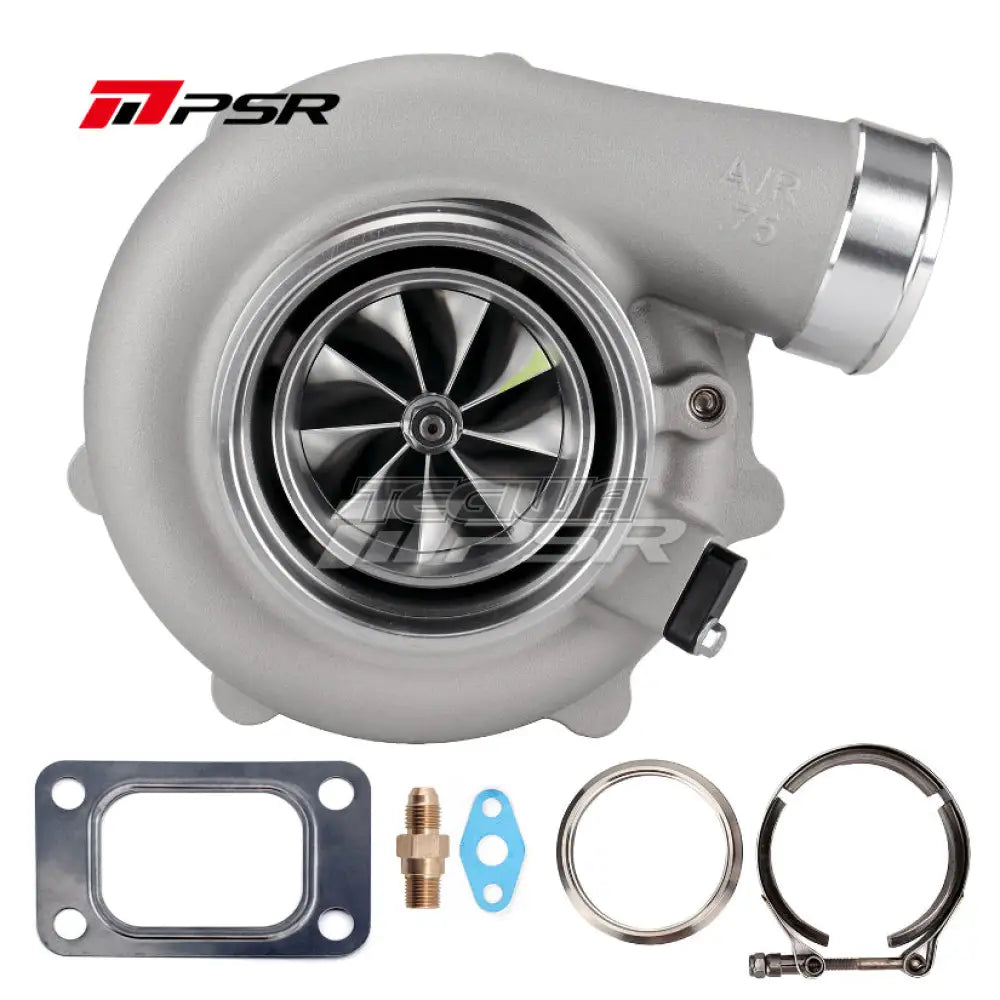

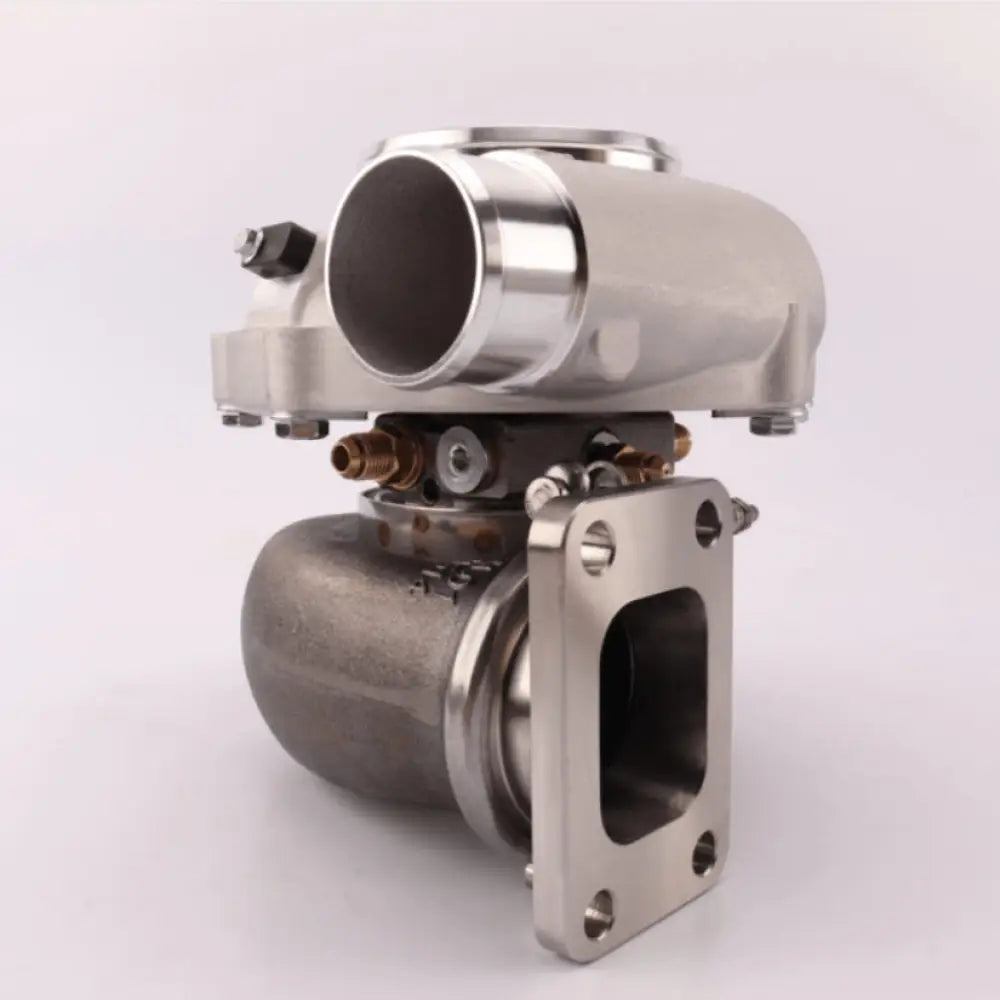

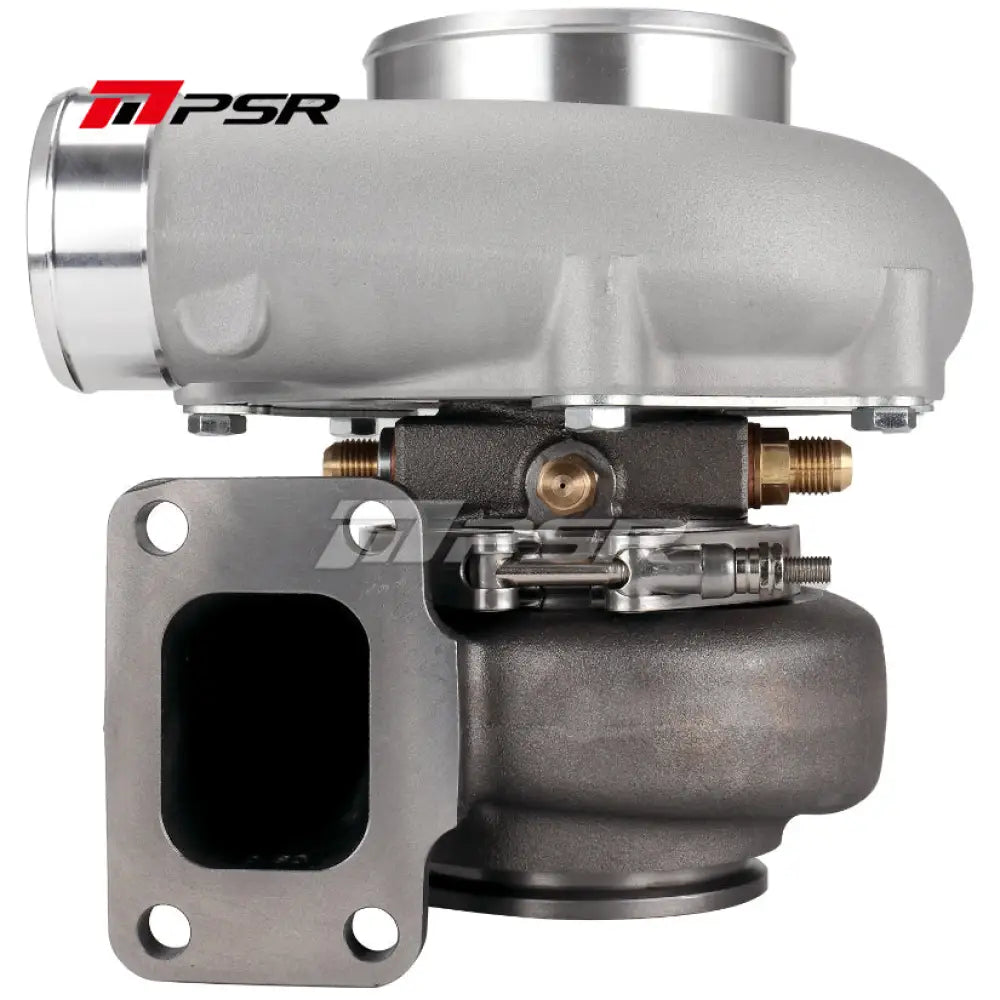

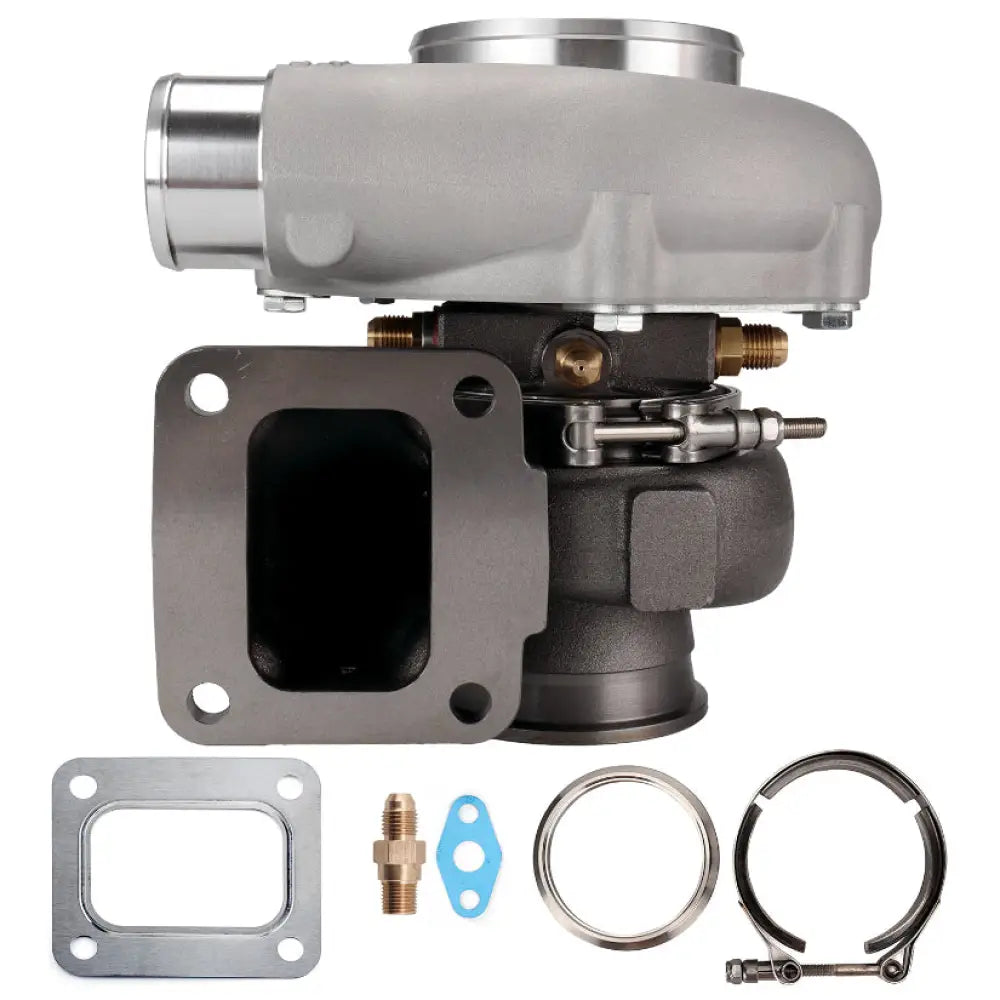

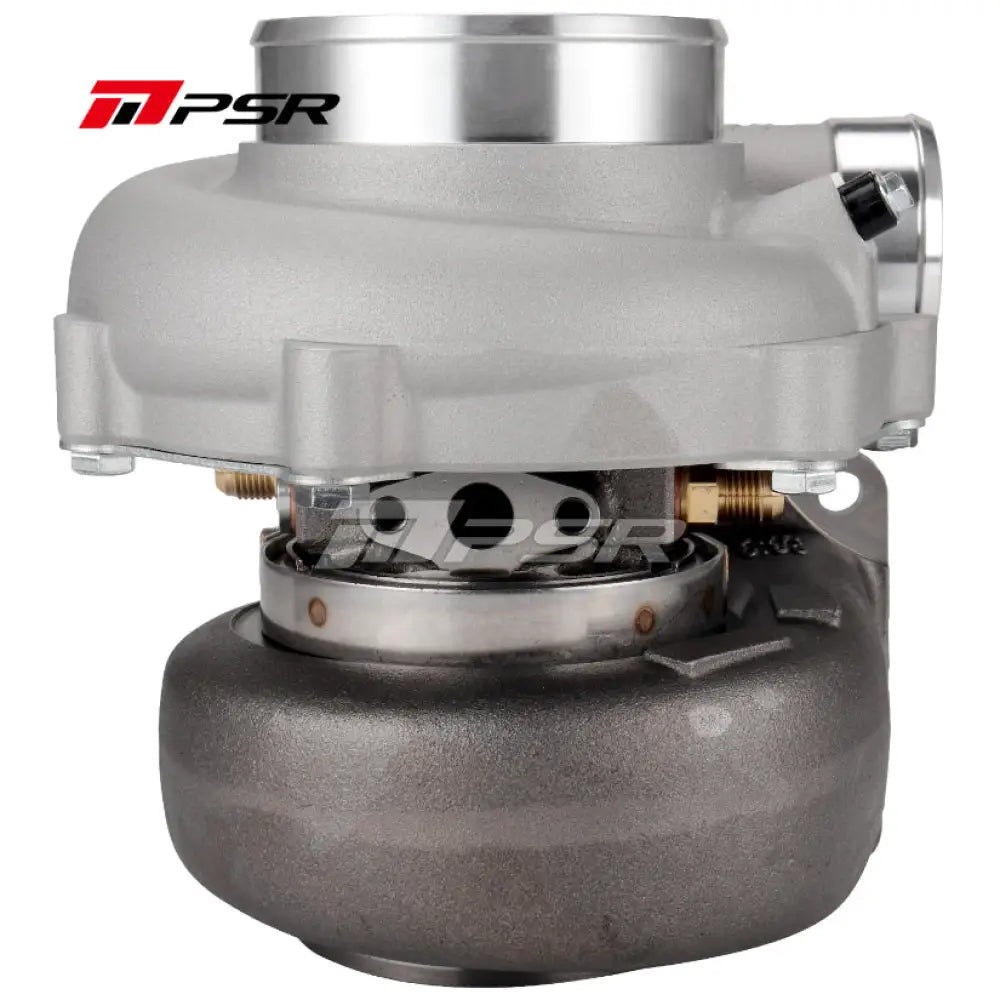

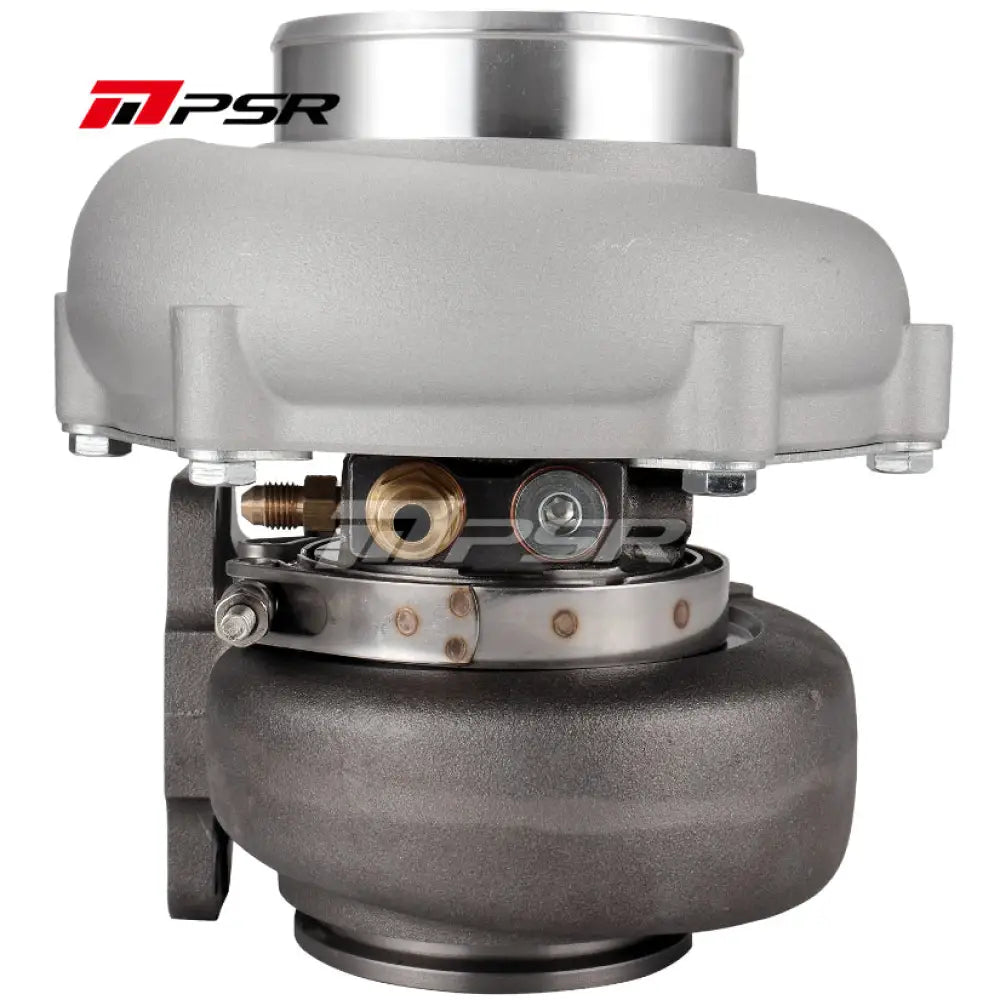

Pulsar PSR6862G 35-1050 Turbocharger
PSR-102152735
Pulsar PSR6862G
- Please note, T51R housing option requires an extra 7 days handling time
- Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
- 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

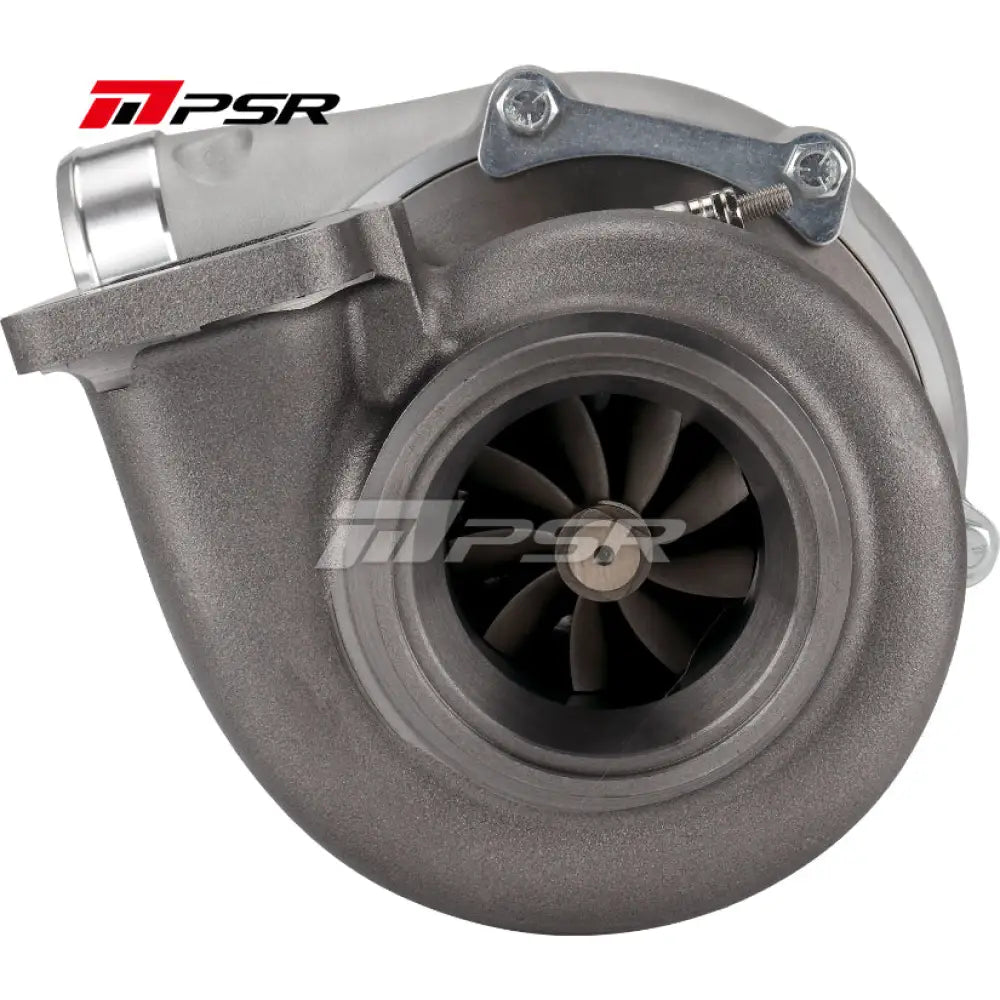

- 9 Blade G-Aero Inconel 713c Turbine Wheel
- Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port
SPEC
- Compressor Wheel: 68*84mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4” Hose
- Compressor Outlet: 2.5” V-Band
- Turbine Inlet: T3/T4/V band
- Turbine Outlet: 3” V-Band
- Water Ports: 2-M14 x 1.5
- Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
- Oil Drain: Std T3
- 3 options for turbine housing: T3 0.83A/R, T4 0.82A/R, Dual vband 1.01A/R*

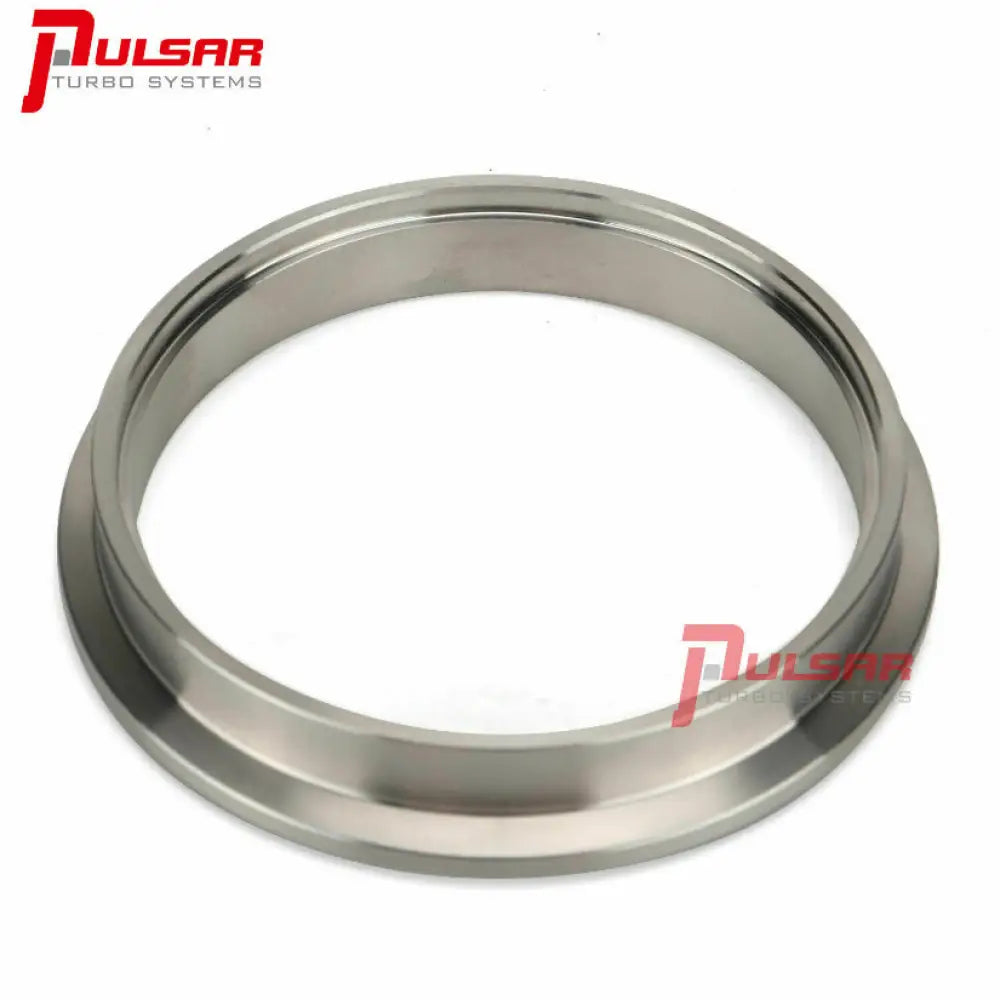

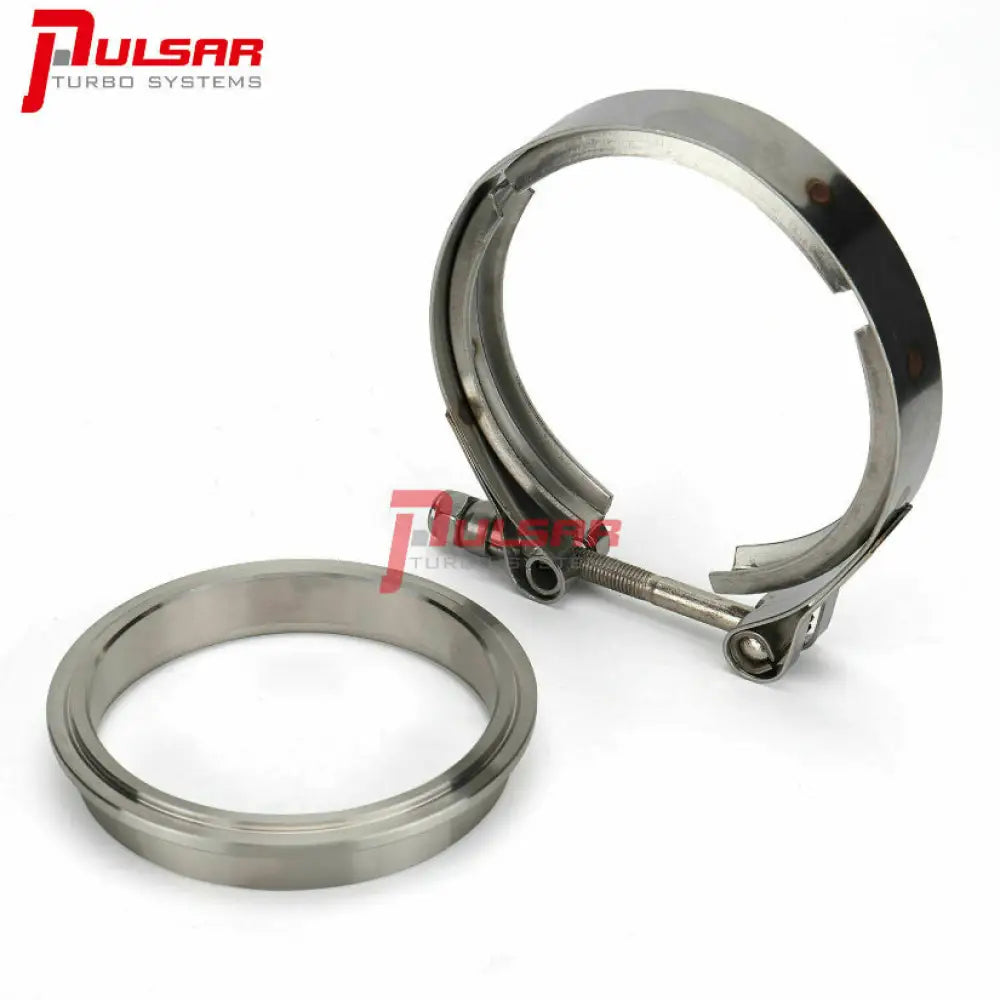

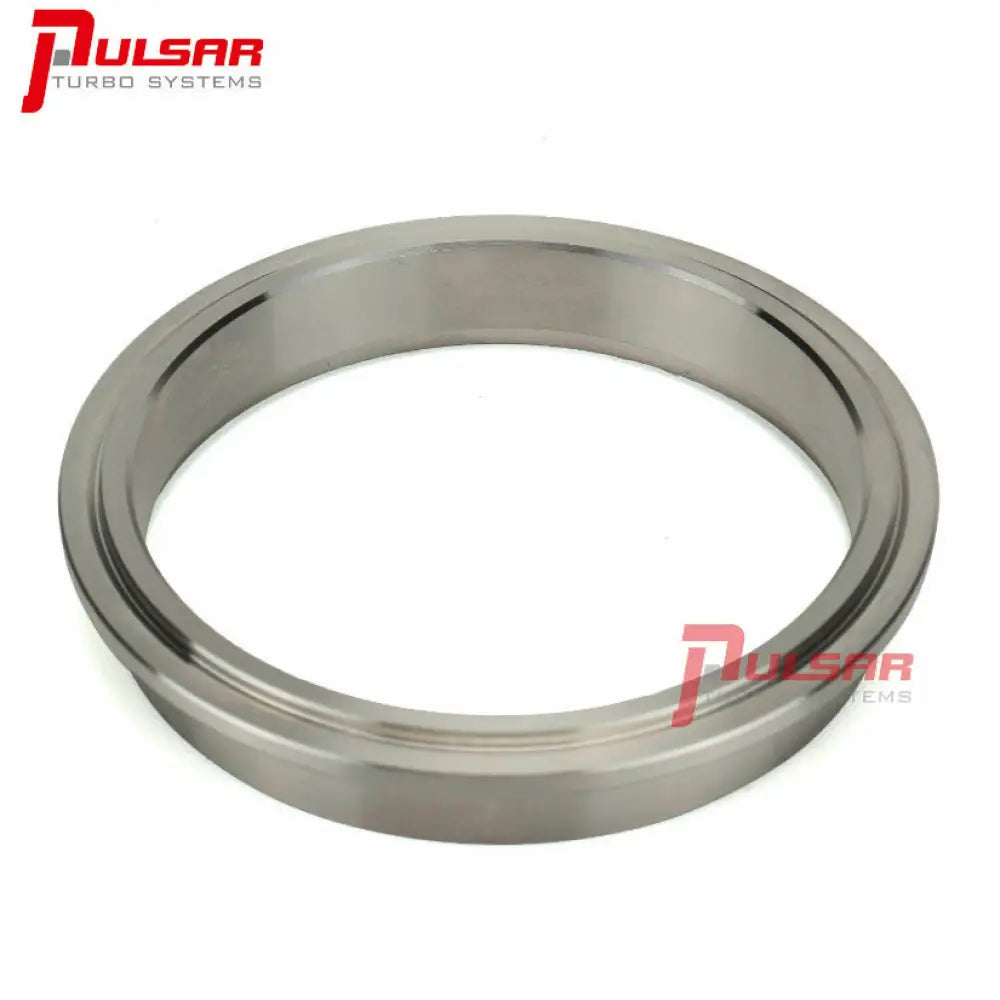

- *Please note , T3 1.01 housing will be supplied with an adapter as per the image.
It's strongly recommended to run water cooling to aid reliability (needed for warranty)
