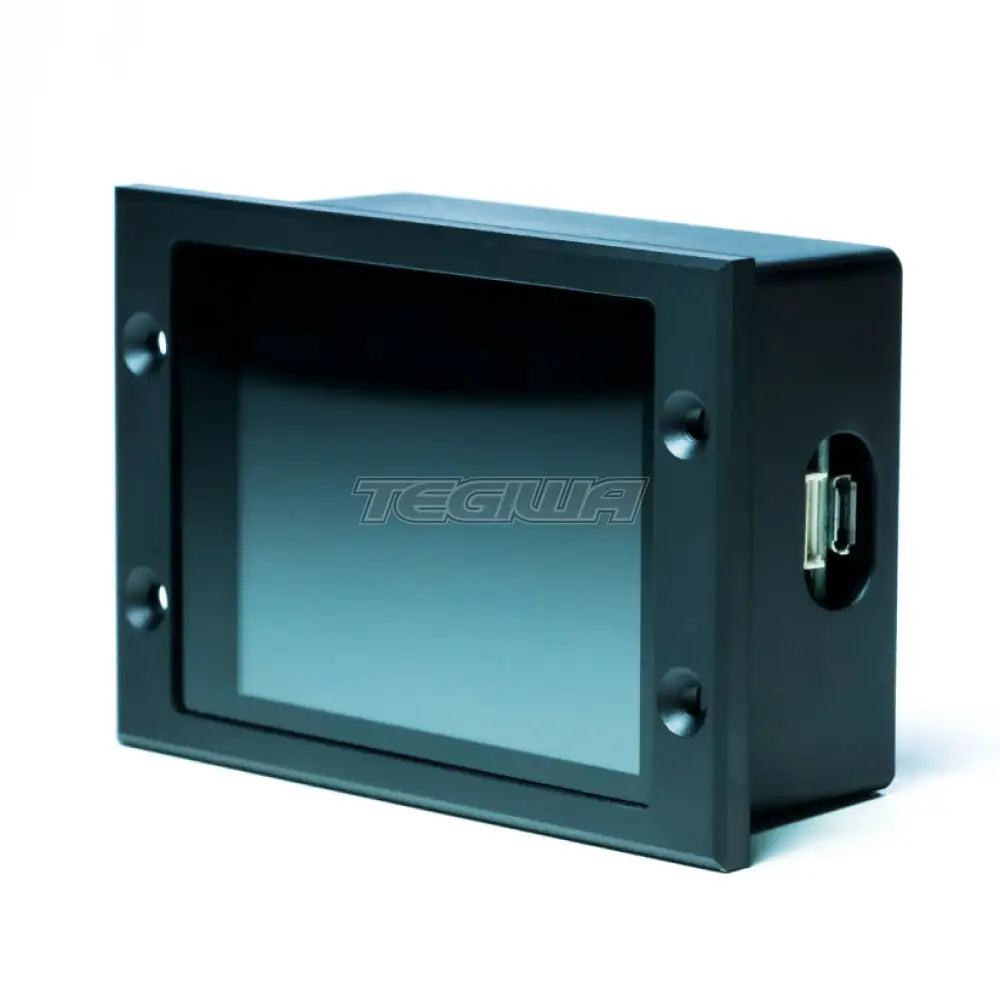

CANchecked MFD28 GEN2 Multi Function Display
CAN-CC02002
- Hardware: 2.8" TFT screen, touchscreen, MicroSD, MicroUSB, milled bezel
- freely configurable directly on the display
- Widgets can be moved and resized using drag'n'drop
- up to 17 widgets per ad
- 64 sensors (Can Bus + internal)
- 10 views
- 4x analog inputs
- 2x speed input
- 1x PWM output¹²
- 1x digital output¹²
- Shift light optional ¹
- CAN bus switching
- data logging
¹Additional hardware required
²from Display Hardware v2
- technical details -
- Opening 70.3x52mm
- Aperture 94x58mm
- Depth 18.5mm
- Bezel thickness: 4.5mm
- Input voltage: 12V (other voltage options are available 5V, 24V)
- Temperature range: -10 to 70°C
- Current consumption: 250mA (optional: +100mA shift light)
- supported values ••-
Many customers always ask: "Which values ••can I request from my control unit". The answer: " ALL ". The display is compatible with ISO 11898-2 and SAE J2284. Both CAN2.0A and CAN2.0B (i.e. 11 and 29bit identifiers) are supported.
The control unit manufacturers themselves determine which values ••are sent via the CAN bus interface and also document them accordingly. So here is just a small excerpt from the most important sensors. There are always more available. A total of up to 50 sensors can be queried if the manufacturer supports this. Other supported control units can be found in our download area
A small note on Megasquirt: all derivatives are supported here, such as KDFI, UMC1, Microsquirt, etc. However, a CAN bus interface must be implemented.
- individualize directly on the screen -
To Use
- 10 displays freely configurable
