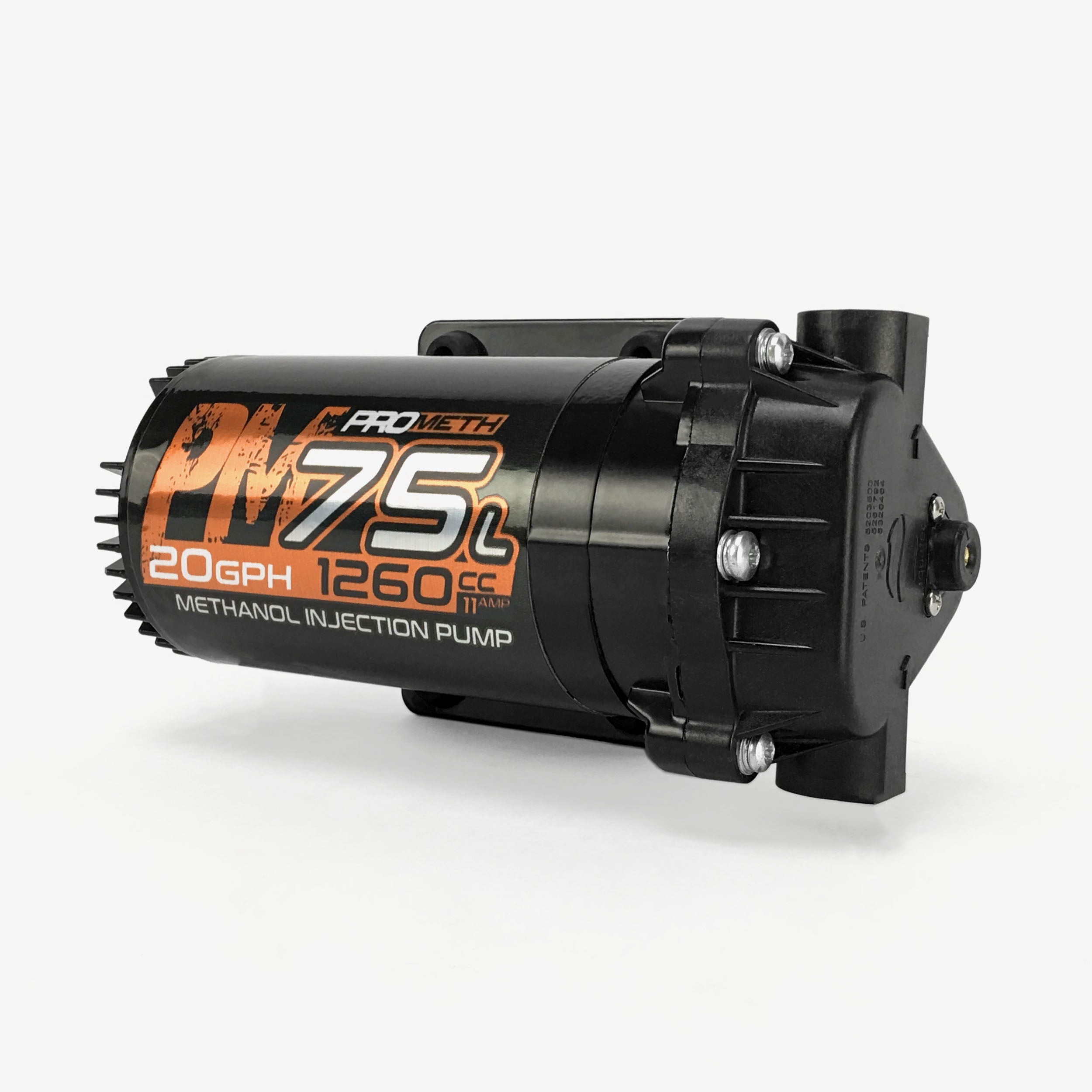

Industry Standard Pump

This is the industry standard water methanol injection pump and what most water methanol injection companies are using. Its commonly identified as a 1.0 gallon per minute open flow pump with a 10-11 AMP sticker rating depending on the pumps factory preset pressure bypass setting of either 200-220 psi. Its not well suited for direct port applications due to its limited flow/pressure potential. However still a great choice for many single or dual nozzle applications under the 600 horsepower mark.

Features Include:

• Pressure adjustable from 100-300 PSI
• 3/8 NPT female inlet & outlet port
• Motor turns 1400 RPM @ 12 volts
• 11 amp draw
• Built-in bypass valve
• Built-in thermal protection
• Built-in anti reverse check valve

• Heavy duty dual EPDM pump seals
• Pressure adjustable from 100-300 PSI
• Can run dry up to 1 hour without damage
• 100% methanol compatible
• Tested prior to shipping
• Made in the USA
• Weight 5.2 lbs

Flow & Horsepower Ratings @ 13.5 Volts:

• 1.1 gallons per minute open flow
• Use 12 gauge wire for power and ground
• 75 liters per hour @ 190 PSI
• 20 gallons per hour @ 190 PSI
• 1260 cubic centimeters @ 190 PSI
• Supports up to 1200-1400 horsepower - 100% water mix
• Supports up to 700-900 horsepower - 50/50 water methanol mix
• Supports up to 500-600 horsepower - 100% methanol mix

Special Notes:

• Do not use with petroleum products (E85, E98, gasoline, diesel, etc)
• Does not include pump fittings. Pump fittings are available for sale separately
• Pumps come preset at 200 PSI
• Expect 4-5 years of service if pump pressure is left at 200 PSI or below
• Running the pump over 250 PSI is not advised and will shorten pumps life
• All tests were performed using a 6AN stainless steel braided hose on the inlet side of pump
• Using 1/4" outside diameter nylon on the inlet side of the pump will reduce pump performance and flow output
• Pump may be mounted vertical or horizontal

Contents Include:

• Pump (1)

Special Notes:

• Do not use with petroleum products (E85, E98, gasoline, diesel, etc)
• Expect 4-5 years of use before needing to be replaced
• Does not include pump fittings. Pump fittings are available for sale separately
• Pumps come preset at 220 PSI
• Expect 4-5 years of service if pump pressure is left at 220 PSI or below
• Running the pump over 250 PSI is not advised and will shorten pumps life
• All tests were performed using a 6AN stainless steel braided hose on the inlet side of pump
• Using 1/4" outside diameter nylon on the inlet side of the pump will reduce pump performance and flow output
• Pump may be mounted vertical or horizontal
