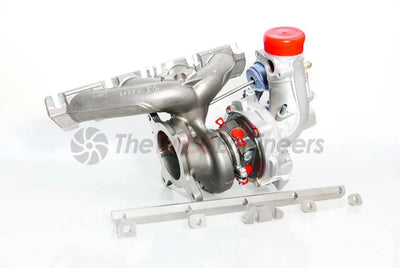

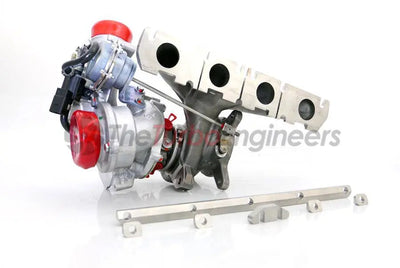

VAG 1.8T TTE370 UPGRADE TURBOCHARGER

The Turbo Engineers TTE370 turbocharger is based on a modified OEM Borg Warner K04-064 turbo taken from the 2.0 tfsi platform. Direct bolt on VAG 1.8T 20V engine, the TTE370 is 370PS+ capable.

You can order a new replacement turbocharger or send your own original K04-064 turbo (in good condition) for an upgrade.

 Engineered & Enhanced

To construct a TTE370 we ditch the original compressor and employ a larger and more efficient forged billet wheel with extended tip tech and we clip the original K04 turbine. We CNC mill the compressor cover to optimum to match the new compressor profile. TTE CNC modify the turbo discharge silencer, removing the baffle internals and fitting a new straight through section, removing any restriction and its function as a noise canceling device, and so improving the flow, giving less surge and enhancing the sound. The clipping of the K04 turbine is a special TTE grinding process to the turbine blade tips. Curved to alleviate stress from the process. Clipping reduces blade area thus increasing gas flow and so reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost level’s. This process also gives a secondary advantage of removing some material, lightening the turbine thus reducing the rotational mass improving moment of inertia. We fit our TTE CNC silencer delete, we modify the turbo discharge silencer, removing the baffle internals and fitting a new straight through section, removing any restriction and its function as a noise canceling device, and so improving the flow, giving less surge and enhancing the sound.

The original bearing is replaced for a High-performance BorgWarner motorsport 360 deg thrust bearing. Durable at high loads with no loss in transient response.

The actuator used is uprated sprung OE unit, fitted with our stainless steel reinforced clamps and hardware for trouble-free operation. This also can also be modified/set to customer needs and specifications if required.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Feature

• Genuine BorgWarner K04-064 Housings & Components
• TTE Upgrade billet compressor wheel
• Optimized Compressor Cover Machining Clearances
• CNC Optimised modified silencer discharge delete
• CNC Ported Intake Pipe
• CNC Machined exhaust manifold for 1.8T fitment
• CNC Adaption hardware for exhaust manifold 1.8T fitment
• BorgWarner k04 turbine, clipped & lightened
• Genuine BorgWarner TTE Uprated & Reinforced Actuator
• Genuine OEM Pierburg N75 Valve
• Special TTE Reinforced Bearing System
• 370PS+ Capable
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Proven TheTurboEngineers quality
• Made in Germany
• This turbo is far from Plug&Play fitment.  Fabrication skill and adaption or custom parts are required
