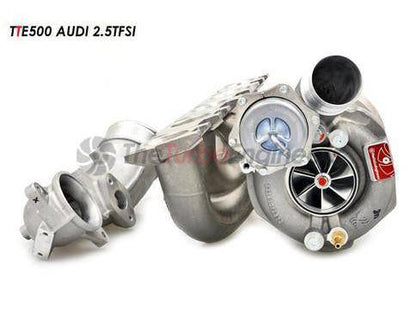

TTE Audi 2.5TFSI Hybrid Turbocharger Upgrade TTE500+ (8J TTRS, 8P/8V RS3 & 8U RSQ3)

Description

Precisely balanced turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using TTE's in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Feature

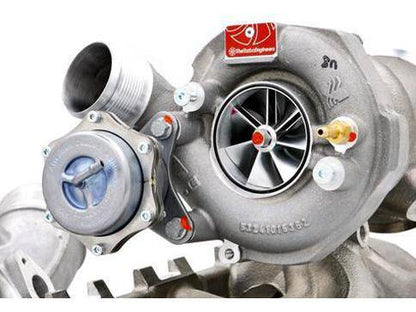

• TTE Billet Highly efficient compressor geometry with a 58mm Inducer
• Genuine BorgWarner clipped K24 Turbine
• Genuine BorgWarner Uprated & reinforced actuator
• Genuine BorgWarner Reinforced motorsport bearing system
• CNC Optimized and hand finished Intake pipe
• Viton O-ring for Intake Sealing
• CNC Optimized Compressor Cover Machining Clearances

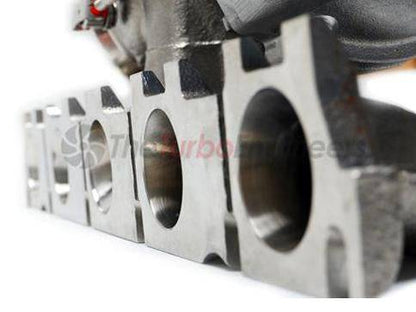

• CNC Port Matched Exhaust Manifold Runners
• Plug and Play Installation
• Single parts finely balanced then components assembled and core high-speed VSR balanced, supplied with a balance test result document
• 500+PS Capable (proven at over 550PS)
• Designed, Machined & Built by TTE in Germany

Upgrade your Existing Turbo
To upgrade your existing turbo, you will need to send us your non-damaged turbo. The listing price is the cost of upgrading a non-damaged turbo only. If your turbo is damaged, there may be extra cost on top of the listing price, we will provide you with a quote after inspection. All turbo will be closely inspected before the upgrade is carried out. You will also receive a report from our engineer after the upgrade is completed.

TheTurboEngineers(TTE)

TheTurboEngineers GmbH based in German is a dynamic and highly innovative turbocharger engineering company, specialised in production of motorsport turbochargers to the highest quality and greatest efficiency with attention to detail. Every component is optimised on long term reliability.

TTE are focused on the construction of prototypes from a concept, through to completion with all work mostly being done in-house to TTE's extremely high standards in Germany. TTE is a fine example of German engineering at its best.

Small details are important to TTE, as is the conversion of existing OE turbochargers to new upgrade specifications, be it new or from a supplied used turbocharger.
TheTurboEngineers GmbH consults and provides to race teams and many well known tuning houses, looking for the best engineered performance turbochargers available.

Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Compatibility

• 2008+ Audi TTRS 2.5 TFSI
• Audi 8P RS3 / 8V RS3 / 8U RSQ3

Delivery

To upgrade your existing turbo, the estimated delivery time is around 3-4 weeks after receiving your existing turbo.

Our new turbos are made to order, the estimated delivery time is also 3-4 weeks after receiving your order.

Warranty

One year TTE warranty.

Upgraded by

TheTurboEngineers (TTE)

Part Number

TTE10027 (New)

SW10027.1 (Refurbished)
