Pneumatic (Vacuum-Based) Straight Gate50 Wastegate black, 6 psi | Turbosmart
Turbosmart Pneumatic (Vacuum-Based) Straight Gate50 Wastegate black
50mm External Wastegate, 6 psi
World's highest-flowing external Wastegate

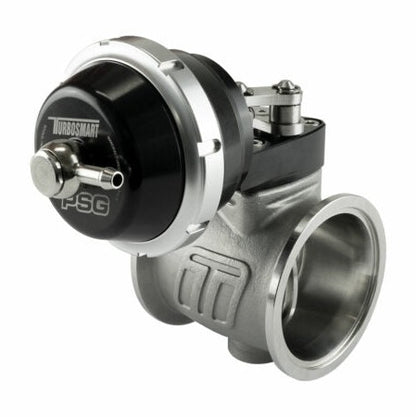

The StraightGate50 from Turbosmart is the world's highest-flowing external wastegate! The StraightGate50 is a zero-offset butterfly-style wastegate that allows enormous flow and almost linear control, and unparalleled boost control throughout the entire operating range.
The Vacuum-Based Pneumatic StraightGate50 takes the Multiple Award Winning eSG50 and simplifies control via a vacuum-based actuator. The Self-Balancing nature of the StraightGate50 means a huge tuning window can be achieved. Vacuum-Based Boost Control also allows the setup of advanced gate strategies, including being utterly open at cold start for increased emissions compliance, as well as working with some OE factory boost control systems where being retro-fitted, equipped initially with vacuum-based Internal Wastegate Actuators. The GenV VAcuum-Based actuator features single & Twin port control for simple connection or boost-assist! The StraightGate50 is simple to use and packed with performance, flow and features!
The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in a wastegate before. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve, which pivots centrally, resulting in a self-balanced valve against any drive pressure. This self-balancing means less work is required to act against even the highest drive pressures, and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight-through valve versus a poppet-style valve where the exhaust gas must be turned 90 degrees by the valve.
Available in:
- Electronic eSG50 StraightGate50 TS-0565-1002
- Pneumatic (Boost-Based) pSG50 StriaghtGate50 TS-0565-1762
- Pneumatic (Vacuum-Based) pSG50v StraightGate50 TS-0565-1212
- 50mm (1.97in) Butterfly Style Zero-Offset Valve
- 383.9 CFM / 10.87m3 per minute flow
- Stainless Steel (630) Butterfly and shaft
- Stainless Steel (347) Main Body
- Stainless Steel (Heat Treated 431) V-Band Clamps
- Aluminium (6262 T6 Anodised) Bracket & Actuator
- Turbosmart unique Locking Collar Ring
- Base Spring Options from 6psi to 42psi
- Suitable for Single or Twin Port Boost-Based Control
- Stainless Steel (N60) Linkages & Control Arm

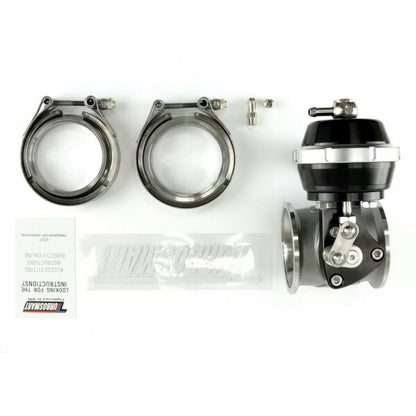

- Boost-Based Pneumatic StraightGate50
- StraihgtGate50 Inlet & Outlet Flanges
- StraightGate50 Inlet & Outlet Weld Flanges
- 6psi Springs Pre-Installed
- All Other Springs including in box
- 2 x 1/8 NPT Hose Tail Fittings
- 2 x 1/8 NPT Blanking Plugs
- Turbosmart Decal
