Intake Pressure Compensation Valve
FMIPCV
Product Description
A Dump, Blow Off, or Recirculation valve, be it piston, diaphragm, OEM, or aftermarket, will be activated by vacuum or electricity, and is designed to improve the drivability of your vehicle giving you maximum power when you want it. All types rely on an internal spring in order to maintain a seal so that you have boost pressure when it is needed. If the spring is too weak, you lose power.
Previously, when an engine was "chipped" or the boost pressure increased, the tuner would need to fit a stronger spring, carefully matched to the increased boost. More recently, with the introduction of electric valves, a tuner would fit an aftermarket replacement valve driven by pressure with an uprated spring. All these remedies rely on the careful matching of the spring rate to the turbocharger boost. This would need to be done each time there was a software, and in some cases hardware, change.
For those running switchable software programs, there was no perfect solution and a compromise spring was normally installed, which would often not perform correctly.
Forge are pleased to offer a fit and forget solution. No more changing springs, turning adjusters, or fine tuning, whilst still not knowing if you have done it correctly. This Forge Motorsport innovation works straight out the box and will work perfectly on a standard engine, a highly tuned engine, and anywhere in between, without the need to change anything! The IPCV (Intake Pressure Compensation Valve) does it all by itself, ensuring that you always get the maximum power and perfect drivability.

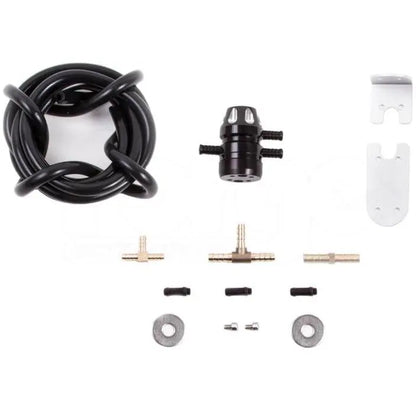

In The Box:
1 x FMIPCV Valve
1 x 2000mm Length of 5mm Vacuum Hose
1 x Flat Bracket
1 x Bent Bracket
1 x 5mm Brass T Piece
1 x 6mm Brass T Piece
1 x 6mm Brass Joiner
1 x M6 Penny Washer
1 x M8 Penny Washer
3 x Alternative Vacuum Ports
2 x M4 x 6 Socket Cap Screws
1 x Instructions
1 x Forge Sticker
