Eventuri Mercedes AMG A35 A250 CLA35 CLA250 Carbon Turbo Tube (Inc. AMG GT, AMG GTS & AMG GTR)
EVE-A35-CF-CHG
Description
MERCEDES AMG A35 A250 CLA35 CLA250
*Some images show our A35 Intake system available separately.

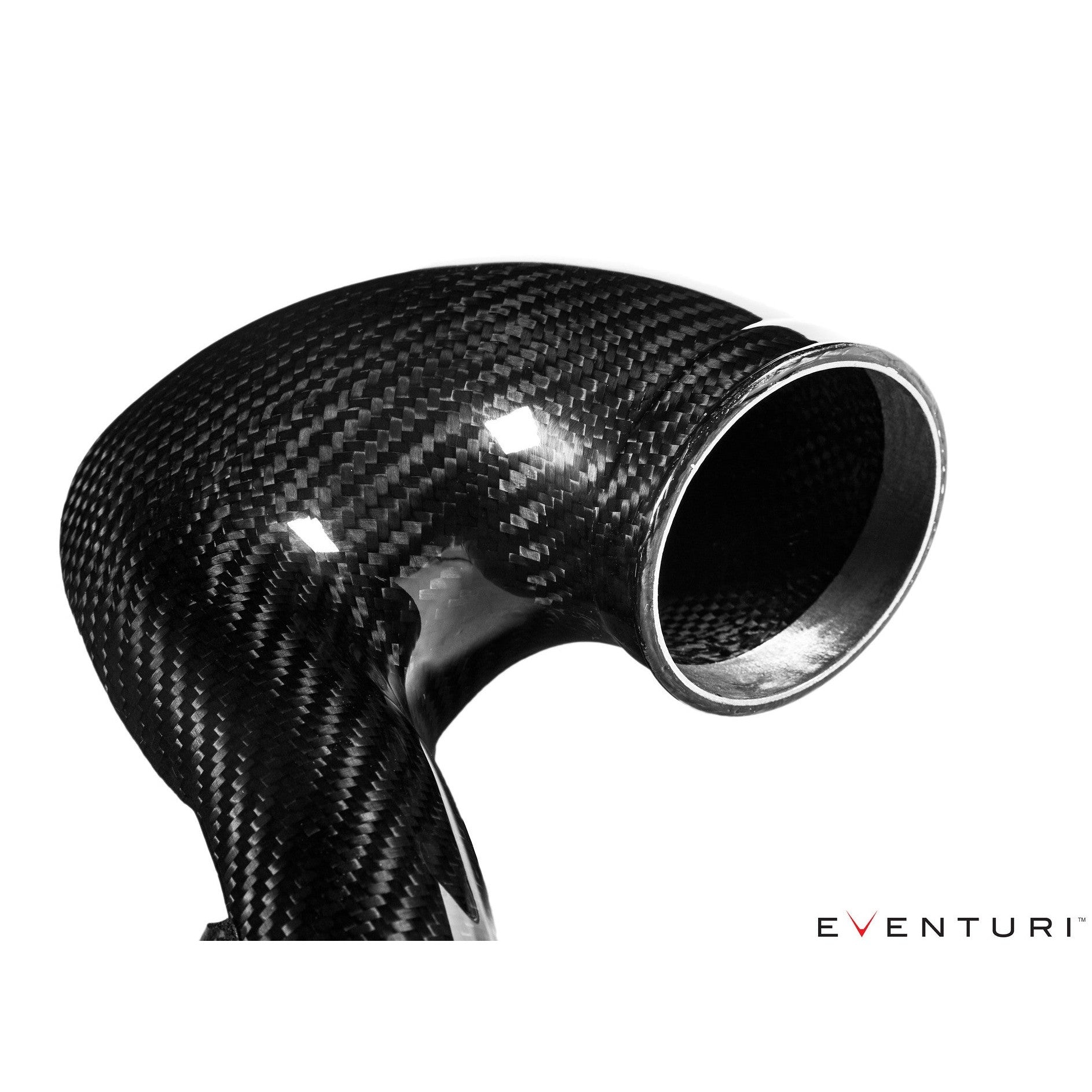

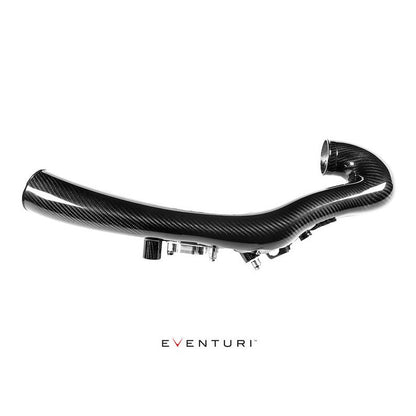

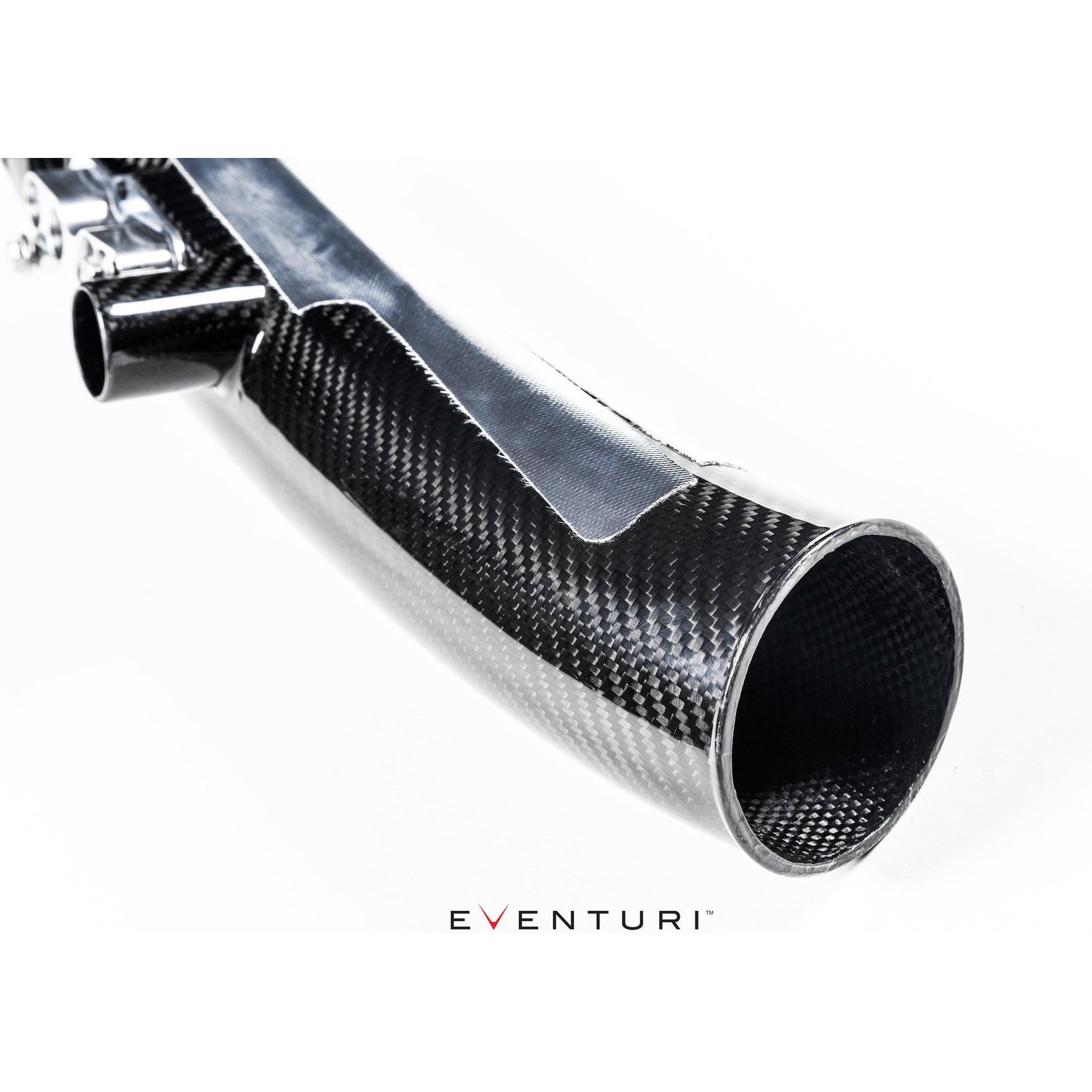

The Mercedes A35 Eventuri Turbo Tube has been developed to provide the turbo with a less restrictive flow path as compared to the stock tube. We have managed to increase the internal volume as well as eliminating the ridged flexible section at the airbox side. By using a completely solid tube all the way from the intake to the turbo, the flow path is smoother and therefore airflow can remain more laminar. To account for engine movement, our A35 intake has a “floating” tube, which can move within the airbox. The shape of the carbon tube at the turbo end has been optimised using CFD to minimise turbulence. The connection to the turbo is achieved with an innovative silicon coupler that features an internal thermal separator between the carbon tube and the metal turbo housing. The multiple breather connectors at the back of the tube are taken care of with a CNC machined block which also provides a smooth internal surface for airflow within the tube.
Features
The Eventuri A35-A250 Turbo Inlet Tube is manufactured from prepreg carbon fiber and come with a number of other components engineered to perform a specific purpose and fabricated to the highest of standards.
Fitment is available for the A35, CLA35 and A250. The inlet tube is designed to fit our intake system only.
Here are the details for each component and the design ethos behind them:

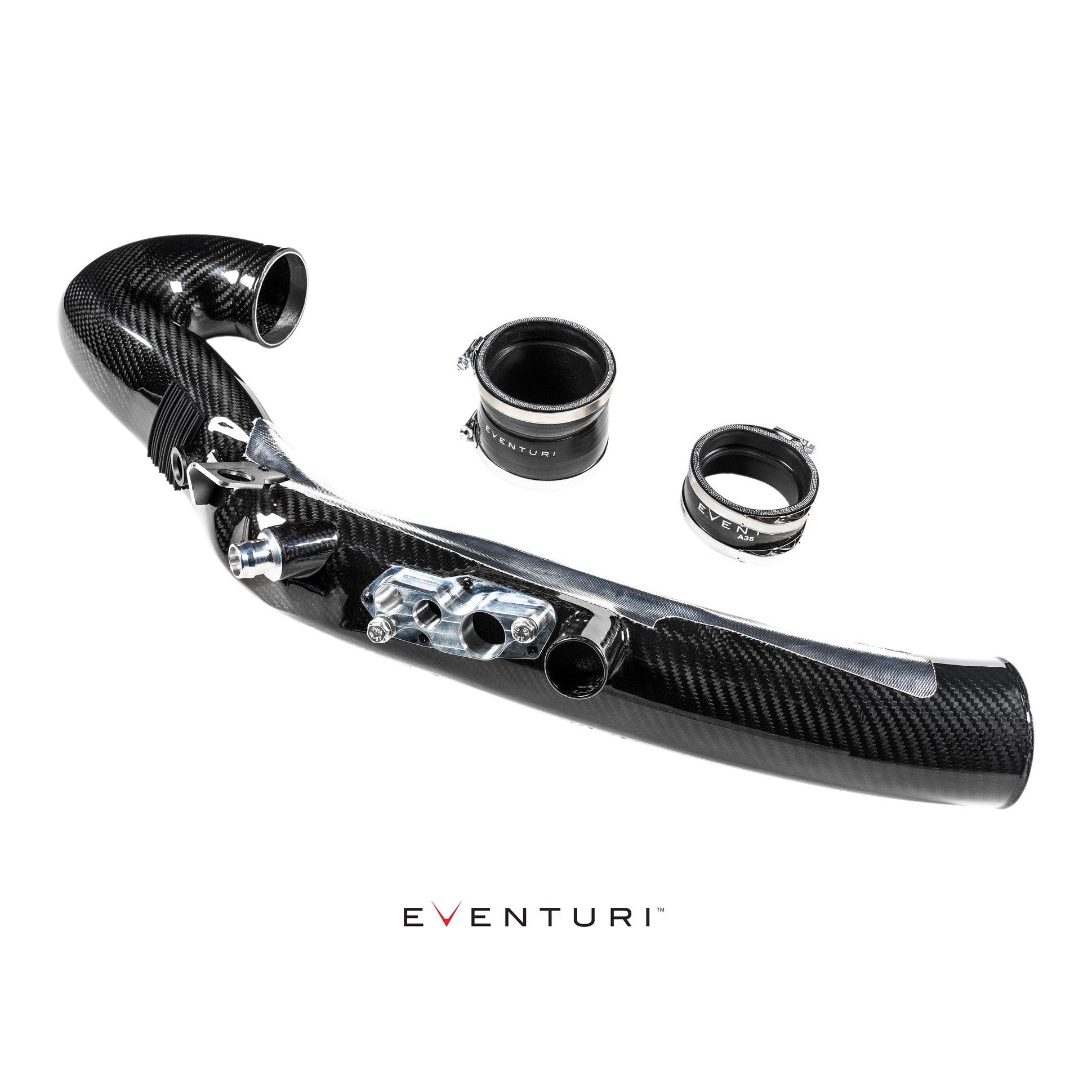

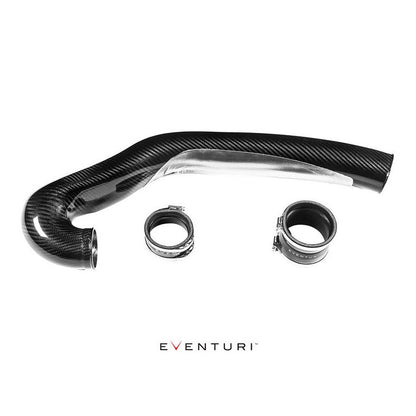

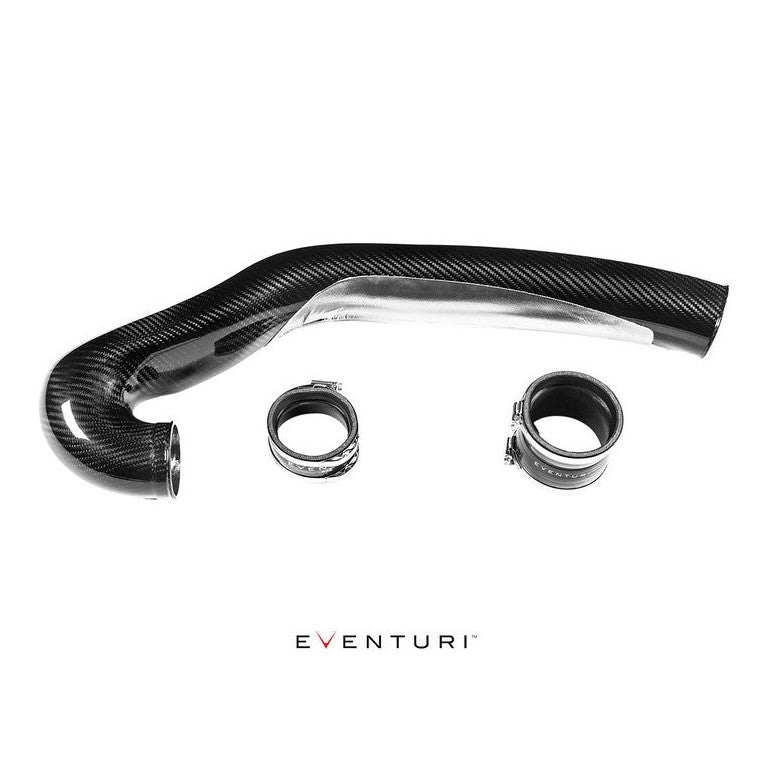

What's Included
- Prepreg Carbon Tube

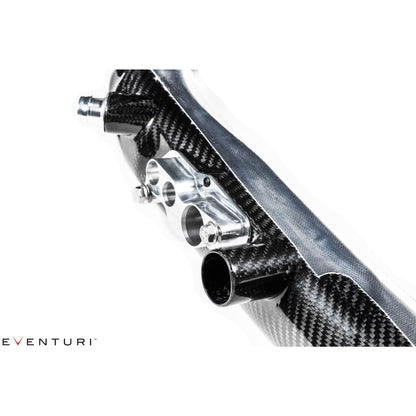

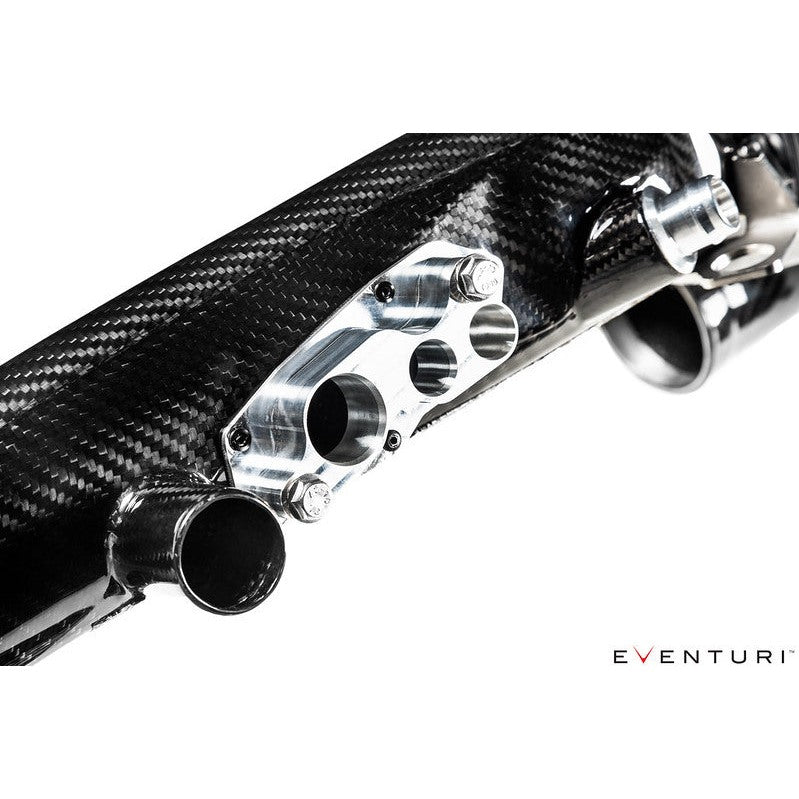

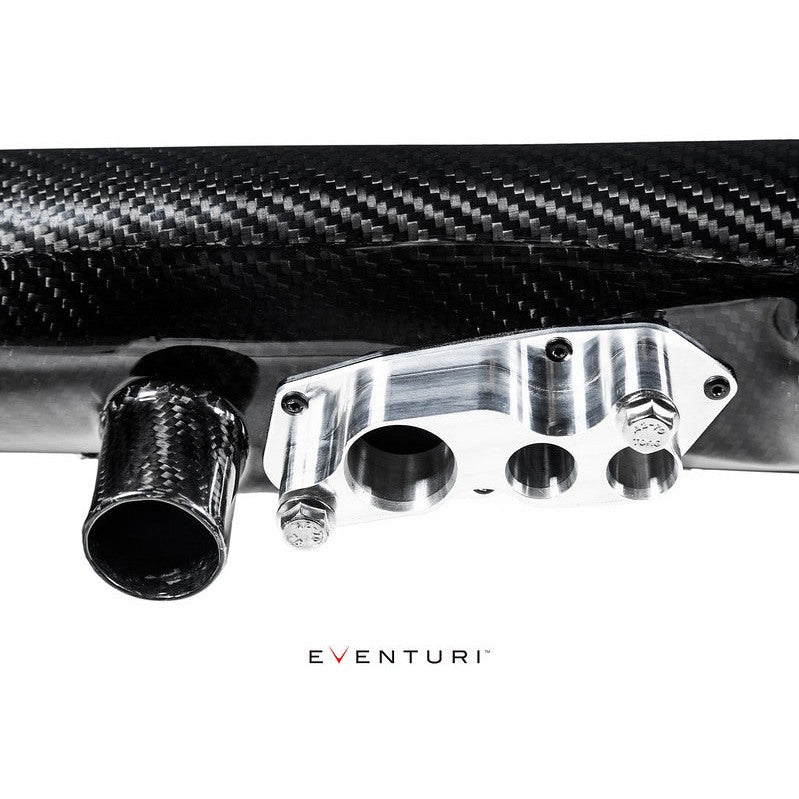

- CNC Machined Breather Block
- CNC Machined MAP Boss
- CNC Machined Breather Connector
- CNC Machined Reinforcement Ring
- Laser Cut Bracket
- Silicon Couplers With Oil Resistant Lining
- Marine Grade Stainless Steel Hose Clamps
Compatibility
Mercedes-AMG A35
Mercedes-AMG CLA35
Mercedes-AMG A250
Mercedes-AMG CLA250
Part Number
EVE-A35-CF-CHG
More Information
Manufactured by
Eventuri
Warranty
One Year Eventuri Warranty
