AUDI C7 S6 & S7

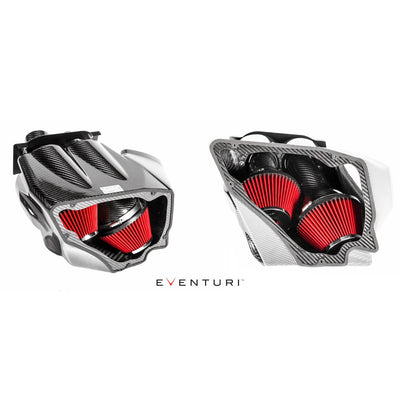

The Audi C7 S6 & S7 Eventuri intake sets a new benchmark for intake design on this platform. It was developed to achieve two objectives – 1) De-restrict the turbo inlet paths. 2) Maintain low inlet temperatures. The first objective was met by providing each turbo with a separate filter and Venturi stack in order to reduce drag and allow the turbos to work more efficiently. The second objective was met by enclosing the filters inside a carbon airbox and feeding them with an additional scoop added behind the front grill. The C7 S6 & S7 engine bay has multiple heat sources from different directions so a simple configuration of open filters and shields would result in higher IAT values. Our carbon airbox enclosure has been designed to maximise the use of the available volume and block all sources of heat. The resulting performance gains and aesthetics are industry leading for the C7 S6 & S7.

The Eventuri Difference

The C7 S6 & S7 Eventuri system uses 2 Venturi stacks mounted to the filters which smoothly transition to the turbo tubes. These provide an aerodynamically efficient airflow path from the filters to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and allows laminar flow to be maintained throughout the tubing, reducing the drag on the turbos.

What's Included

The Eventuri C7 S6 & S7 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. Here are the details for each component and the design ethos behind them:

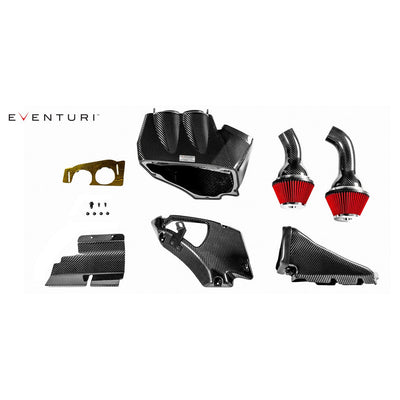

Each intake system consists of:

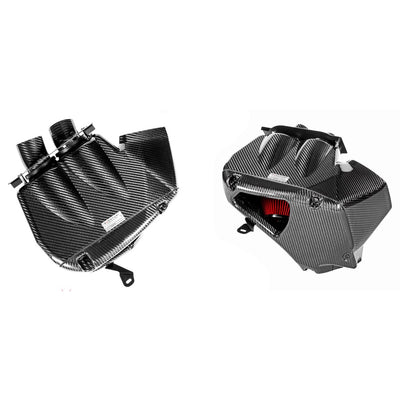

• Carbon Fibre Airbox Enclosure
• 2 x High Flow Double Cone Air Filters
• 2 x Carbon Venturi stacks with integrated tubes
• Carbon Fibre Inlet Duct
• Carbon Fibre Front Scoop
• Laser Cut Heat Shield with Gold Reflective
• Laser Cut Stainless Steel Bracket Work
• CNC Machined Airbox Mounts

Compatibility

Audi C7 S6 & S7

Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Part Number

EVE-C7S6-CF-INT

EVE-C7S6-KVR-INT (Red)

EVE-C7S6-KVB-INT (Blue)

EVE-C7S6-KVY-INT (Yellow)

More Information

Manufactured by

Eventuri

Warranty

One Year Eventuri Warranty
