Eventuri Audi BMW MINI Porsche Type 151 Small Replacement Filter (Inc. RS4, M3, 911 Turbo & FK2 Type-R)

Description

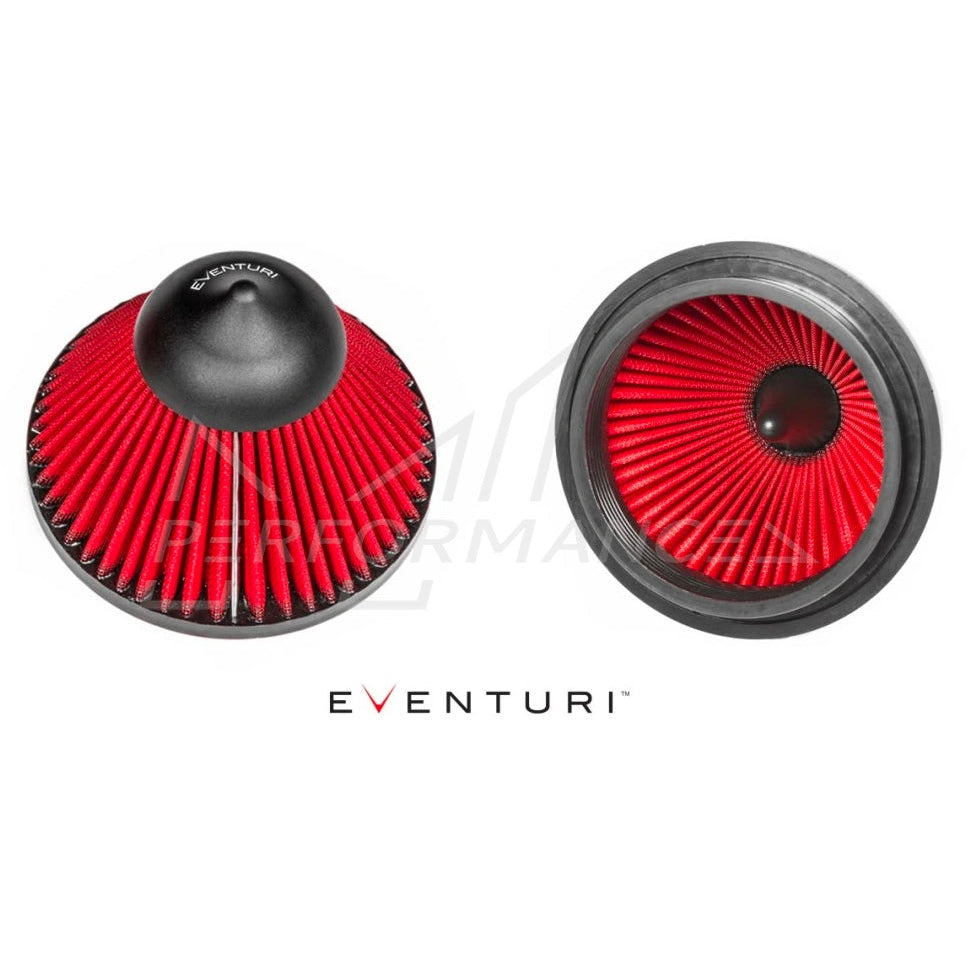

Redesigned Eventuri Replacement Filter Type 151

Bespoke Filter Design
We are proud to announce our bespoke filter cones for 2018. This filter is a custom design which was developed to provide optimum airflow through our Eventuri housings where the filter is reverse mounted. It is a direct replacement for all of our intakes which use Eventuri carbon housings and will be fitted to all new intakes from 2018.

Filtration and Construction

Unlike many other intake companies who use a generic filter, we have carried out extensive R&D and invested significant funds into our own unique filter design, so that it is optimised in our Patent Pending reverse mounted configuration. The filtration medium is constructed from non-woven mesh and is ISO 5011 tested which conforms to the same filtration standard as OEM filters. The mesh is double layered and is dry which means that it will not damage MAF sensors with oil. Our filters feature 2 flow directing cones which have been carefully modelled to direct airflow as follows:

Airflow

The resulting flow through the filter and also smooth at the exit of the intake, to the connecting tube is smooth with a high velocity profile. In real terms, this means that the engine is able to draw air very efficiently, and the driver will be able to notice a sharper throttle response, as well as the power and torque improvements. Where the engine has a turbo(s) it will be able to achieve peak boost earlier as it will be working with less resistance. Tests have shown that our systems reduce the waste gate duty cycle by a significant percentage over the OEM system.

The following diagrams are CFD simulations showing velocity streamlines through our system – with the new filter and the original filter.

Aesthetics

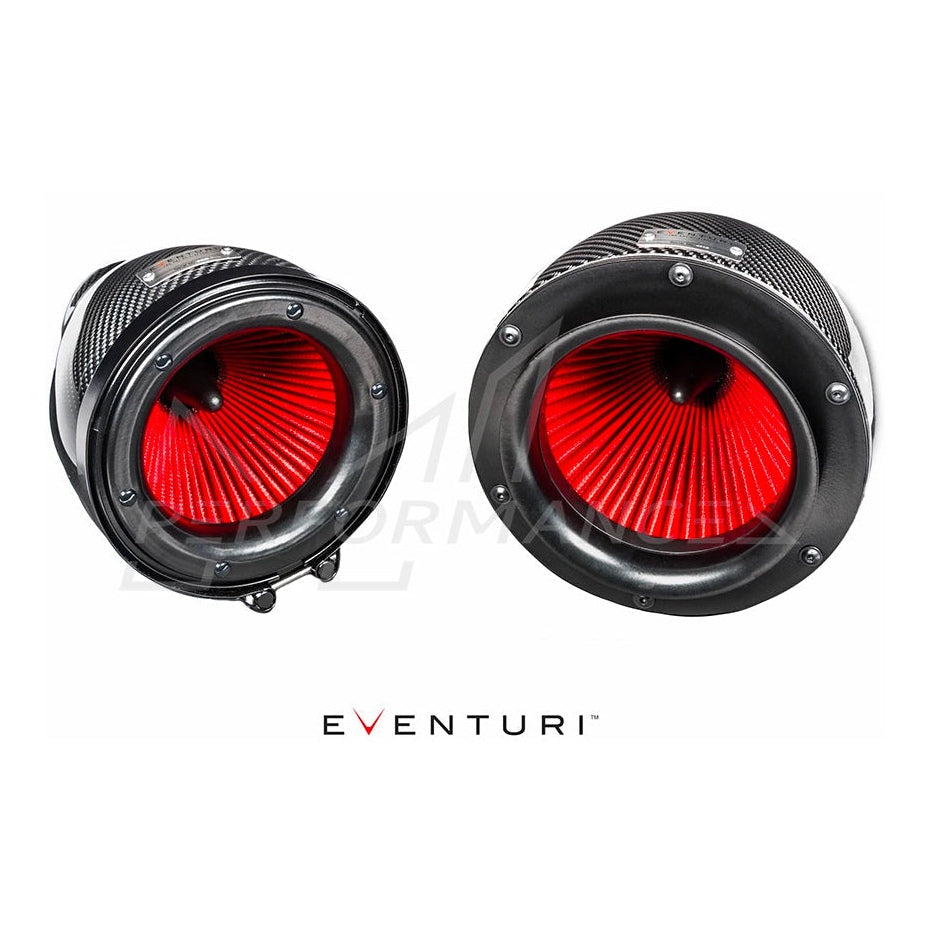

Aside from the technical improvements, the upgraded filters resemble the engines of an aircraft – resulting in a dynamic overall aesthetic once installed into the carbon housings. From the reverse – looking into the carbon housing – the laser etched outer cap is clearly visible surrounded by the filter mesh. An awe-inspiring sight.

What's Included

1 x Eventuri Replacement Filter

(Please change the quantities to 2 if you have 2 filters on your existing Eventuri intake system.)

Compatibility

The upgraded filters will be used on all relevant Eventuri intakes from February 2018. They are also available as direct replacements for existing Eventuri intakes using the original style double cone filter.

The Type 151 Replacement Filter is designed to fit the following vehicles:

AUDI:

• C7 RS6 / RS7 - REQUIRES 2
• C7 S6 / S7 - REQUIRES 2
• B8 RS5 / RS4 - REQUIRES 2

BMW:

• F8X M3 / M4 - REQUIRES 2
• F87 M2 COMPETITION S55 - REQUIRES 2
• F87 M2 N55 - REQUIRES 2
• N20 320I / 328I / 428I

MINI

• F56 COOPER S / JC

PORSCHE:

• 991 TURBO / TURBO S - REQUIRES 2

Please Note: The new filters are available for ALL Eventuri intakes EXCEPT the following:

• BMW E92/E90 M3
• Audi C7 RS6/RS7
• Honda Type R FK8

Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number(UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Performance Gains

Resulting Improvements

Through Dyno testing the Eventuri intakes back-to-back with the original filters vs the upgraded filters, we have found an additional power and torque gain. This validates our theoretical modelling and proves that the upgraded filters really have a significant impact on the airflow through the intake. The power gains over and above the original filters vary between vehicles, but here are some of the results we have measured so far. Please note – these graphs show the Eventuri intake with original filter vs upgraded filters. Not against the stock airboxes – which will now be an even larger gain!

Part Number

EVE-151-G2-FTR

More Information

Warranty

One Year Eventuri Warranty

Manufactured by

Eventuri
